BBE MAX-X3
Crossover, 2 Way Stereo/3 Way Mono, with Sonic Maximizer

OUR PART #:  MAX-X3

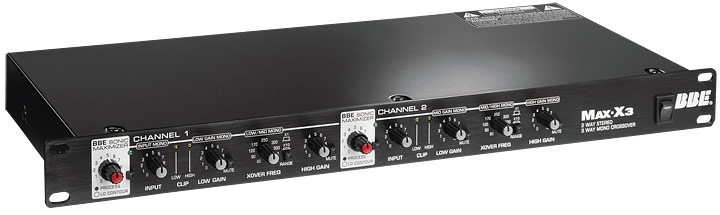

The BBE® Max-X3™ is a highly sophisticated 2-way stereo/3-way mono crossover.
Learn More
Our Price: $199.99
List Price: $279.00
You save 28%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

BBE MAX-X3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The BBE® Max-X3™ is a highly sophisticated 2-way stereo/3-way mono crossover. Housed in a compact and easy-to-use package, it provides a variety of options for virtually all live sound reinforcement amplifier configurations. Max-X3's logical design makes it simple to understand and easy to use, and its sonic integrity promises clean, distortionfree
audio with a predictable, repeatable range of control. The Max-X3 makes state-ofthe-art crossover technology affordable, but this unit is much more than a high-quality, superbly engineered crossover.

The Max-X3 is the first signal processor of its kind to feature an on-board BBE Sonic Maximizer. The BBE High Definition Sound process employed by the Sonic Maximizer is world renown among music and sound professionals for remarkable improvements in total sound quality, bringing crystalline clarity and air to the source material as well as revealing rich harmonic subtleties. The Max-X3 employs BBE's latest High Definition Sound technology, in the very same 4th Generation BBE Professional chipset which powers the BBE 482i and 882i Sonic Maximizers.

The Max-X3 employs state-variable 4th-order Linkwitz-Riley filters. This filter design minimizes phase inaccuracies in the critical crossover region and ensures the output at all frequencies remains in-phase, which is critical for the accurate summing of each driver in a speaker stack. The Linkwitz-Riley filter design has a very steep 24dB/octave slope, which ensures that each driver designed to reproduce a specific frequency range is not driven beyond its limits.

The “over-engineering” in the Max-X3 ensures excellent sonic performance, with all the features demanded in a true professional product. By offering a superb, full-featured 2-way stereo/ 3-way mono crossover with an integrated BBE Sonic Maximizer system, the Max-X3 has no equal at any price.

Features and Specifications

  • Full Function BBE Sonic Maximizer
  • State-variable Linkwitz-Riley 24dB/ octave filters
  • Top audio performance with high slew rate circuitry and over 115dB dynamic range for clear transparent sound
  • Designed for the most precise accurate control
  • Phase inversion switches
  • Low-cut subsonic filters for low frequency driver protection
  • Servo-balanced XLR and unbalanced 1/4" inputs and outputs
  • Switchable constant directivity horn equalization circuit for use with horns requiring a high frequency boost
  • Shielded internal power supply with AC voltage select switch (~115V/60Hz or ~230V/50Hz)
  • 2 year Warranty
