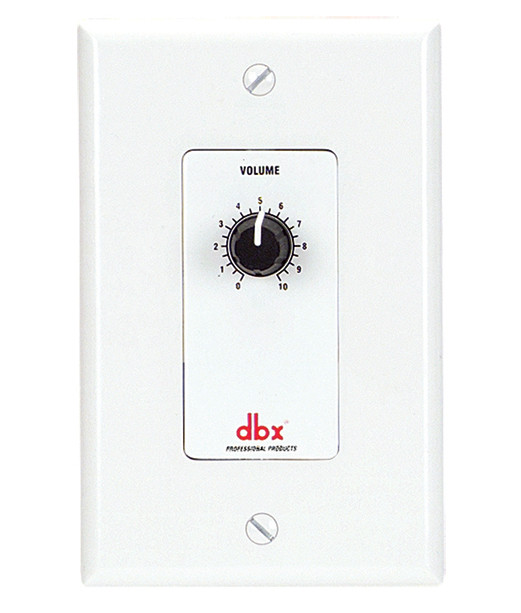

DBX ZC-1
Zone Controller for Driverack

OUR PART #:  ZC-1

The ZC-1 provides programmable remote volume control for the DriveRack 220i, 260 and ZonePRO devices.
Learn More
Our Price: $54.00
List Price: $68.00
You save 21%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DBX ZC-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

The ZC-1 provides programmable remote volume control for the DriveRack 220i, 260 and ZonePRO devices.

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

Specifications:

  • Connectors  (2) RJ-45
  • Series Wiring  Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
  • Parallel Wiring using ZC-BOB  Up to Six Zone Controllers: 1000 ft.
  • Parallel Wiring Cable  CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
  • Safety Agency Certifications  UL 60065, IEC 60065, EN 55013, E60065
