Product Overview

This pair of Audio-technica ATW-A49 UHF wide-band LPDA (Log Periodic Dipole Array) antennas is designed to provide enhanced signal pickup for UHF wireless systems that operate over the frequency range of 440-900 MHz, a remarkable 2-to-1 frequency range. This bandwidth includes all UHF TV channels (14-69, 470-806 MHz). Supplied in pairs, these directional antennas can extend the operating range and reliability of diversity UHF wireless systems. Additionally, they can eliminate the need for multiple frequency-specific antennas.

They're made especially for applications that require an increased distance between the transmitter and the receiver, e.g., in stadiums and concert tour venues, as well as theater and large performance areas, or any location where line-of-sight may be obstructed. They're ruggedly-constructed paddle-style antennas that are equally suited for installation and/or portable use.

They're compatible with virtually all UHF wireless receivers and offer a directional coverage pattern with a typical 90 degree beamwidth. They deliver approximately 6 dB of RF gain improvement over standard receiver whip antennas. Antenna impedance is 50 ohms.

Constructed of industrial-grade copper-clad epoxy fiberglass, these antennas are heavy-duty, with durable construction that's engineered to resist the effects of corrosion, UV degradation, and vibration to providing long life and stable performance under challenging operating conditions. Their integrated, high-quality, low-loss BNC connecters are positioned to minimize RF cable strain, and they come fully assembled.

Each antenna paddle is matched to 50 ohms impedance with an integral high-quality low-loss BNC connector; 6 dB gain. Engineered for permanent or temporary installation, each mounts to 5/8"-27 threads.

Audio-technica ATW-A49 Specifications:

  • For specifications as well as additional information, please refer to items located under the "DOCUMENTATION" tab above.

Notes:

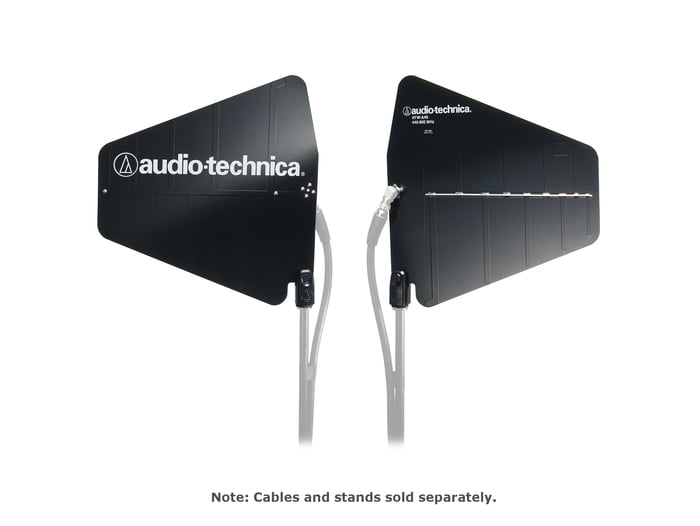

The image shown above is for illustrative purposes only; cables and stands are sold separately. For more information on this and other products, contact your Sales Representative.
