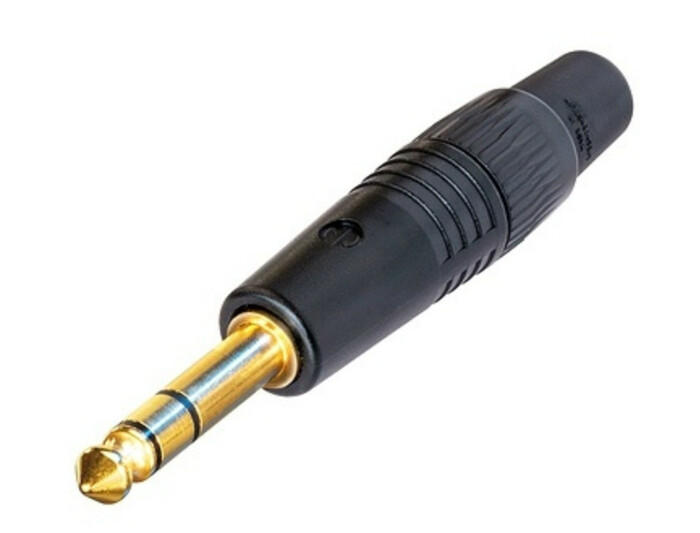

Neutrik NP3C-B
Black 3-conductor 1/4" phone plug with Gold Contacts

OUR PART #:  NP3C-B

1/4" professional phone plug, all metal, no rivets. Black metal housing with gold contacts. 3 pole.
Learn More
Our Price: $6.87
List Price: $9.14
Save up to 37% when you order by quantity!
  • Buy 25: $6.20 each.
  • Buy 50: $5.98 each.
  • Buy 100: $5.76 each.
Write the first review.

Related Products

1/4" professional phone plug, all metal, no rivets. Black metal housing with gold contacts. 3 pole.

Neutrik NP3C-B Specifications:

  • Electrical:
    • Rated current: depends on mating connector
    • Contact resistance: depends on mating connector
    • Insulation resistance - initial: > 2 G , after damp heat test: = 1 G
    • Dielectric strength: 1 kV dc
  • Mechanical:
    • Wiring: solder terminals
    • Wire size: 1 mm² / AWG 18
    • Cable O.D.: 4 - 7 mm
    • Solderability: complies with IEC 68-2-20
  • Materials:
    • Shell ZnAl4Cu1, Ni or black Cr plated
      • RCS: only Ni plated / PA6 50% GR
    • Insulation: PA 6.6 30% GR
    • Contacts: CuZn39Pb3, 2 µm Ni (Su) or gold plated
    • Chuck: POM
    • Bushing: POM + PU
    • Temperature range: -20°C to +65°C
