Atlas Sound SM8CXT-B
8" Coaxial Loudspeaker with 70/100V Transformer and 8 Ohm Operation

OUR PART #:  SM8CXT-B

The Atlas Sound SM Series of loudspeakers offer quality sound reproduction and contemporary styling.
Learn More
Our Price: $407.99
List Price: $508.99
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound SM8CXT-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound SM Series of loudspeakers offer quality sound reproduction and contemporary styling. The SM8CXT-B features the SM8CXT60—a 150 watt loudspeaker that combines an 8" diameter, low frequency transducer and a 1" exit, compression driver. The speaker has a curvlilinear, polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. The low frequency transducer and the high frequency driver feature permanently aligned voice coils for low distortion performance. The copper coils have Polyimide voice coil formers.

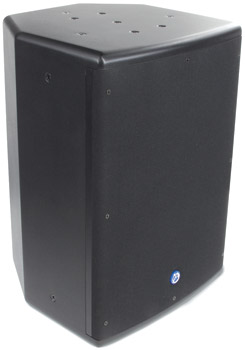

The SM8CXT-B features a wood enclosure with a metal grille. Internal hardware, for flying, includes multiple (12) 1/4"-20 inserts for overheard suspension in most any orientation.

A 90 degree conical pattern (2 kHz octave band) and amazing efficiency make the SM8CXT-B a perfect choice for a wide variety of applications including school auditoriums, gymnasiums, cafeterias, church sanctuary systems, and more.

Atlas Sound SM8CXT-B Features:

  • Attractive, heavy-duty grille assembly
  • Barrier strip input for 70.7/100V/8 Ohm or parallel 4-pole Speak-on input for 8 ohm operation only
  • Durable black, rough-coat finish
  • Fuse protection for low and high frequency drivers
  • High performance Atlas Sound compression driver coaxial loudspeaker in versatile, flyable, wood enclosure
  • Includes internal, high efficiency 60 Watt 70.7/100V transformer (may be bypassed for 8 ohm operation)
  • Multiple (12) 1/4"-20 inserts, providing fly points for a variety of mounting configurations
  • Optional brackets for wall mounting
  • Unique input panel allows use of standard 4" square box cover (Raco 753 oreq.) for applications where flex conduit is required for termination

Atlas Sound SM8CXT-B Specifications:

  • Speaker Type: High Performance Coaxial
  • Frequency Response: 60 Hz - 15 kHz
  • Power Taps: 7.5, 15, 30, 60 Watts & 8 Ohms
  • 8 Ohms RMS Power: 150 Watts
  • Dispersion: 90°
  • Sensitivity: 92dB
  • Dimensions: 15-1/2" H x 10-5/8" W x 10-3/8" D (39.37 x 26.9875 x 26.3525 cm)
  • Shipping Weight: 30 lbs (13.61 kg)
