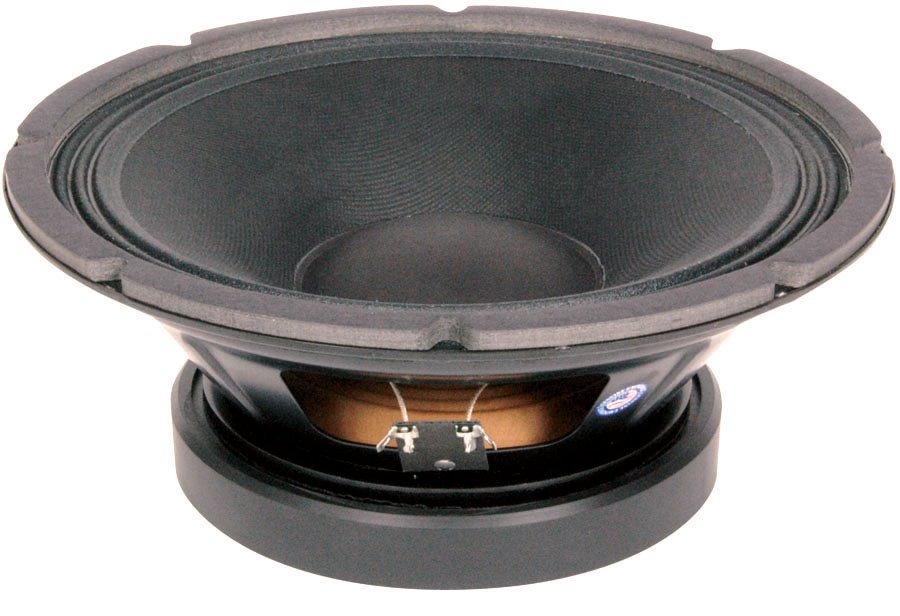

Eminence KAPPA-12A 12" Woofer for PA Applications

The Eminence Spekaer KAPPA-12 12" Subwoofer is recommended for professional audio as a mid/hi or full range in a vented enclosure.

Specifications:

• Nominal Basket Diameter: 12" (304.8mm)
• Nominal Impedance: 8 ohms
• Power Rating:
  • Watts: 450W
  • Music Program: 900W
• Resonance: 45Hz
• Usable Frequency Range: 62Hz - 4.2kHz
• Sensitivity: 99.3dB
• Magnet Weight: 80 oz.
• Gap Height: 0.37" (9.53mm)
• Voice Coil Diameter: 3" (76.2mm)
• Mounting Information
  • Recommended Enclosure Volume
  • Sealed: N/a
  • Vented: 1.2-2.2 cu.ft. (34-62 liters)
  • Driver Volume Displaced: 155.5 cu.in. (2.55 liters)
  • Overall Diameter: 12.26" (311.4mm)
  • Baffle Hole Diameter: 11" (279.5mm)
  • Front Sealing Gasket: Fitted as standard
  • Rear Sealing Gasket: Fitted as standard
  • Mounting Holes Diameter: 0.25" (6.4mm)
  • Mounting Holes (B.C.D.): 11.71" (297.5mm)
  • Depth: 5.63" (143mm)
  • Net Weight: 14.9 lbs (6.8 kg)
  • Shipping Weight: 17.9 lbs (8.2 kgs)
