Radio Design Labs TX-J2
Unbalanced Input Transformer - Sums Unbalanced Stereo Inputs to Balanced Mono Out

OUR PART #:  TXJ2

The RDL TX-J2 is an unbalanced input transformer with unbalanced stereo inputs to summed balanced mono output.
Learn More
Our Price: $60.47
List Price: $80.88
You save 25%!

5.0 / 5

★★★★★ 1 Review. Write Yours

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs TX-J2
Qty:
In Stock

Similar Products

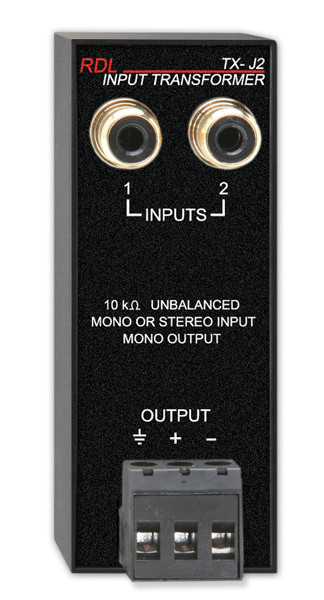

The RDL TX-J2 is an unbalanced input transformer with unbalanced stereo inputs to summed balanced mono output. It's the ideal choice where installations require the passive mixing of 2 unbalanced line-level audio sources to feed a balanced (or unbalanced) audio output. It's a complete unbalanced line-level audio input module with a front panel that features 2 gold-plated phono jacks, intended for mono or stereo consumer level sources. Inputs 1 and 2 are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the front-panel detachable terminal block for connection to 10 kOhms or higher input impedance line-level module or equipment inputs.

NOTE: The TX-J2 is a passive module that does not add gain to the consumer level input. Therefore the balanced output level from the module is not a standard +4 dBu. For installations where a +4 dBu balanced line-level is required, or if the input level is particularly low, RDL's TX-LC2 is recommended. Contact your Sales Pro for more details.

Choose the TX-J2 wherever consumer format audio signals need to be converted to a balanced line without gain. Use it individually or in concert with other RDL products as part of a complete audio/video system.

Typical application diagram (added amplifiers and stereo equipment shown are sold separately):

http://www.rdlnet.com/i/product_images_large/tx-j2_drawing.jpg

RDL TX-J2 Features:

  • Mix 2 unbalanced audio signals to mono balanced
  • Combine stereo into mono with balanced output
  • Unbalanced to balanced conversion without gain
  • Hum cancellation on unbalanced line inputs
  • Frequency response: 30 Hz to 20 kHz (+/- 1 dB)

RDL TX-J2 Specifications:

  • Ambient Operating Temperature: 0° C to 55° C
  • Package Type: Cardboard Box
  • Package Dimensions: 2" x 2" x 4"
  • Shipping Weight: 0.335 lbs
  • Product Dimensional Illustration (inches/cm):

TX-J2
