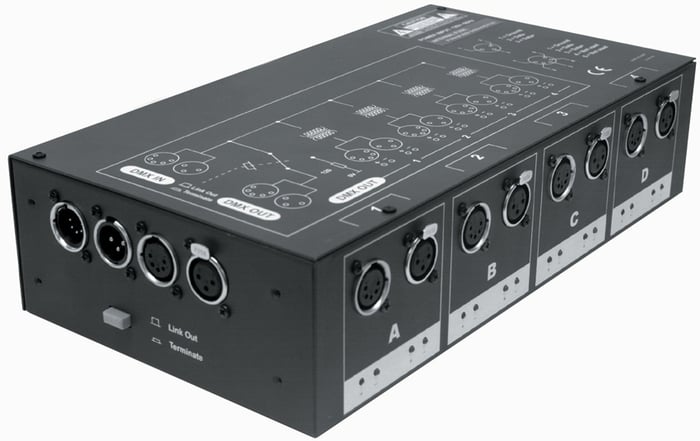

Elation Pro Lighting DMX-Branch / 4
4-Way DMX Distributor

OUR PART #:  DMX-BRANCH/4

The Elation Pro Lighting DMX-Branch/4™ is a DMX signal splitter/booster that splits a single DMX signal into four separate outputs...
Learn More
Our Price: $200.00
List Price: $250.00
You save 20%!
Write the first review.
Elation Pro Lighting DMX-Branch / 4
Qty:
In Stock

Related Products

The Elation Pro Lighting DMX-Branch/4™ is a DMX signal splitter/booster that splits a single DMX signal into four separate outputs, as well as boosts the signal for extended cable runs usually associated with large permanent installations. DMX-BRANCH/4™ includes a set of 3pin and 5pin DMX inputs, a set of 3pin and 5pin DMX outputs for linking up to four additional units, four sets of 3pin and 5pin isolated DMX outputs, a link out/terminate switch, and DMX data LED indicators for each of the four DMX outputs. Flexible installation options are possible like truss mounting using the included 3/16" (4.7625mm) threaded hole for a clamp (NOT included), and a 19" rack mounting kit is included.

Elation Pro Lighting DMX-Branch/4 Features:

  • 3pin & 5pin DMX Inputs
  • 3pin & 5pin DMX Outputs (thru)
  • 4-Way 3pin & 5pin Isolated DMX Outputs
  • Link Out / Terminate Button
  • Linkable Up To (4) Units
  • DMX Data LED Indicators
  • 19" Rack Mount Kit (included)
  • 3/16" (0.1875mm) Threaded Hole for Clamp (NOT included)

Elation Pro Lighting DMX-Branch/4 Specifications:

  • Dimensions (LxWxH): 13.0” x 7.25” x 3.0” (330 x 184 x76 mm)
  • Weight: 7.0 lbs. (3.2 kg)
  • Electrical/Thermal:
    • AC 120V - 60Hz
    • Fuse: 5A 250V 5x20mm
