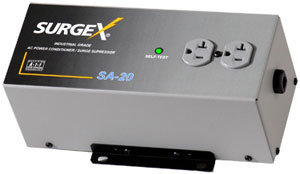

SurgeX SA20
Power Conditioner, 20 Amps, 120 Volts

OUR PART #  SA20

Our Price: $419.00
(Low Price Guarantee)
In Stock

The SA-15 and SA-20 are specifically designed to upgrade and improve surge protection for audio, video, computer and all sensitive electronic equipment. These standalone units when fitted with optional mounting brackets easily mount where you need them. The SA-15 rated for 15 amps and the SA-20 rated for 20 amps both feature two industrial grade grounded AC receptacles and feature Impedance Tolerant® EMI/RFI filters. SurgeX patented advanced Series Mode Pro™ technology is superior to conventional MOV circuitry. Both units provide proven, reliable protection: blocking and containing surges of up to 6,000 volts, unlimited current, without noise producing ground contamination. The SA-15 and SA-20 meet the most stringent government purchase specifications for AC powerline surge suppressors. The A-1-1 rating assures you of dependable protection from destructive spikes, surges and inductive transients.

Features:

  • Made in U.S.A., Listed to UL 1449-2
  • Magnetic shielding steel enclosure
  • 9’ grounded 3-wire #12 line cord
  • Two grounded receptacles on top panel: unswitched
  • Self-test circuit with visual indicator
  • Dimensions (W x H x D): 10.22" x 4.0" x 4.2" (26.0 x 10.6 x 10.7 cm)
  • Weight: 8.5 lbs. (3.8 kg)

Specifications:

  • Load Rating: 20 amps @ 120 volts
  • UL 1449-2 Adjunct Classification Test Results: 1000 surges, 6000 volts,3000 amps, C1 pulse, measured suppressed voltage 290 volts, no failures.
  • 1996 Federal Guidelines, Grade A, Class 1, Mode 1: Both models meetguidelines. Limiters (3 circuits): Series surge reactor current limiter.Cascaded autotracking dual polarity voltage limiter. Dual pulse inverters.
  • Clamping Voltage Onset: 172 volts nominal (2 volts above peak linevoltage, auto-tracking).
  • Filter (bi-directional, wave tracking): With 50 ohm load: 3 dB @ 3 kHz; 38dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 5 MHz; 50 dB @ 30 MHz.
  • Let-Through Slew Rate: 5000 volt/µs disturbance reduced to 28 volt/µswithin power wave envelope; less than 10 volt/µs outside power wave envelope.
  • Snubber: Instant-reacting snubber for fast-rising surges generated withinthe building.
  • Maximum Applied Surge Pulse Joule Rating: Unlimited, due to currentlimiting (8 x 20 µs).
  • Maximum Applied Surge Pulse Voltage: 6000 volts (1.2 x 50 µs pulse),industry standard rating.
  • Maximum Applied Surge Pulse Current: 100,000 amperes (8 x 20µs).Endurance: IEEE C62.41-1991 Category B3 (C1) Pulses: 1 kv>500,000;3kv>10,000; 6 kv>1000 (NRTL-UL certified).

SurgeX SA20
Power Conditioner, 20 Amps, 120 Volts

OUR PART #  SA20

Product Information:

The SA-15 and SA-20 are specifically designed to upgrade and improve surge protection for audio, video, computer and all sensitive electronic equipment. These standalone units when fitted with optional mounting brackets easily mount where you need them. The SA-15 rated for 15 amps and the SA-20 rated for 20 amps both feature two industrial grade grounded AC receptacles and feature Impedance Tolerant® EMI/RFI filters. SurgeX patented advanced Series Mode Pro™ technology is superior to conventional MOV circuitry. Both units provide proven, reliable protection: blocking and containing surges of up to 6,000 volts, unlimited current, without noise producing ground contamination. The SA-15 and SA-20 meet the most stringent government purchase specifications for AC powerline surge suppressors. The A-1-1 rating assures you of dependable protection from destructive spikes, surges and inductive transients.

Features:

  • Made in U.S.A., Listed to UL 1449-2
  • Magnetic shielding steel enclosure
  • 9’ grounded 3-wire #12 line cord
  • Two grounded receptacles on top panel: unswitched
  • Self-test circuit with visual indicator
  • Dimensions (W x H x D): 10.22" x 4.0" x 4.2" (26.0 x 10.6 x 10.7 cm)
  • Weight: 8.5 lbs. (3.8 kg)

Specifications:

  • Load Rating: 20 amps @ 120 volts
  • UL 1449-2 Adjunct Classification Test Results: 1000 surges, 6000 volts,3000 amps, C1 pulse, measured suppressed voltage 290 volts, no failures.
  • 1996 Federal Guidelines, Grade A, Class 1, Mode 1: Both models meetguidelines. Limiters (3 circuits): Series surge reactor current limiter.Cascaded autotracking dual polarity voltage limiter. Dual pulse inverters.
  • Clamping Voltage Onset: 172 volts nominal (2 volts above peak linevoltage, auto-tracking).
  • Filter (bi-directional, wave tracking): With 50 ohm load: 3 dB @ 3 kHz; 38dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 5 MHz; 50 dB @ 30 MHz.
  • Let-Through Slew Rate: 5000 volt/µs disturbance reduced to 28 volt/µswithin power wave envelope; less than 10 volt/µs outside power wave envelope.
  • Snubber: Instant-reacting snubber for fast-rising surges generated withinthe building.
  • Maximum Applied Surge Pulse Joule Rating: Unlimited, due to currentlimiting (8 x 20 µs).
  • Maximum Applied Surge Pulse Voltage: 6000 volts (1.2 x 50 µs pulse),industry standard rating.
  • Maximum Applied Surge Pulse Current: 100,000 amperes (8 x 20µs).Endurance: IEEE C62.41-1991 Category B3 (C1) Pulses: 1 kv>500,000;3kv>10,000; 6 kv>1000 (NRTL-UL certified).
