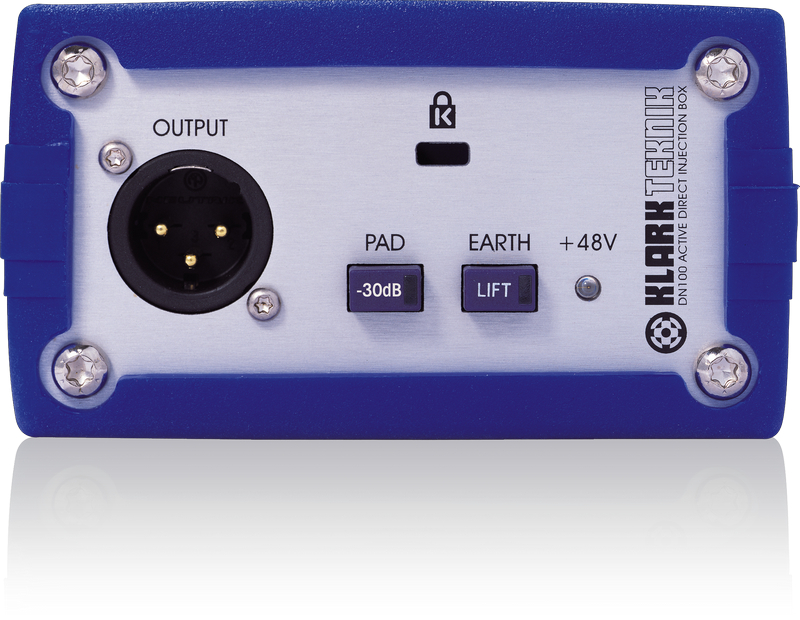

Klark Teknik DN100
Active Direct Box

OUR PART #:  DN100

The Klark Teknik DN100 Direct Injection Box is the natural successor to the long-established LBB100.
Learn More
Our Price: $99.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Klark Teknik DN100
In Stock

Similar Products

The Klark Teknik DN100 Direct Injection Box is the natural successor to the long-established LBB100.

A ground-up redesign provides an extended dynamic range, lower noise floor and all the world-class audio performance you’d expect from Klark Teknik. DN100 is also designed to handle the rigours of life on the road: a thick aluminium shell protects the electronics, and this in turn is protected by a tough silicone rubber casing, which is replaceable and available as a spare part.

We’ve also fitted a Kensington security slot in one of the end panels to allow the unit to be made secure using a Kensington MicroSaver security cable.

Klark Teknik DN100 Specifications:

  • Input:
    • Type: active electronic, balanced or unbalanced
    • Impedance: 1M ohms nominal, balanced or unbalanced (jack connectors) 20K ohms (XLR input only)
    • Connectors: 2 quarter inch jacks and 3-pin XLR linked in parallel
    • Max. Level: 30dBu
    • Attenuator: 20dB, switchable
  • Output:
    • Type: Transformer Isolated, balanced
    • Impedance: 300 ohms
    • Connector: 3 pin XLR
    • Max. Level: 10dBu with load >2k ohms
    • Min. load: 600 ohms
  • Performance:
    • Noise: -100dBu, 20Hz to 20kHz unweighted, with input terminated by 10k resistor
    • Frequency response: +0.5/-1dB 20Hz to 20kHz
    • Distortion (THD+N): <0.01% @ 1kHz, +4dBu output
  • Power Requirement:
    • Voltage: +48V Phantom
    • Current consumption: <10mA
  • Weight: <1 kg
  • Dimensions (LxWxH): 5.6" x 4.2" x 2.35" (142 x 106 x 60 mm)
