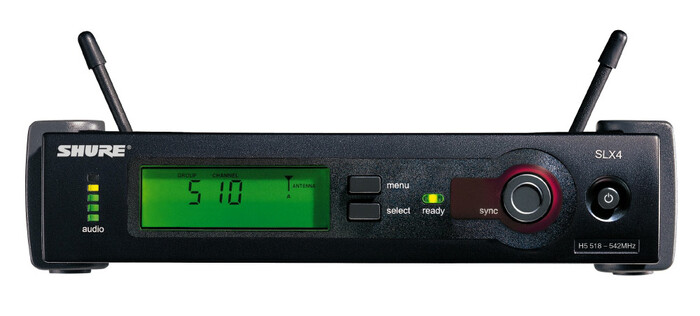

Shure SLX4 Wireless Receiver

OUR PART #: SLX4 MFR #: SLX4=-H5

Copied to clipboard

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup, for use with SLX Wireless. ...Read more

Shure SLX4 Wireless Receiver Image 1
Shure SLX4 Wireless Receiver
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup, for use with SLX Wireless. With included rack hardware and detachable antennas, it is ready for immediate installation right out of the box. SLX Wireless Systems feature the patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology. Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

  • 960 selectable frequencies across 24MHz bandwidth
  • Multi-function, backlit LCD
  • Microprocessor-controlled diversity
  • XLR and 1/4" outputs
  • Frequency and power lockout

Specifications

  • Dimensions (HxWxD): 42mm x 197mm x 134mm
  • Weight: 1.13 lbs
  • Housing: Galvanized steel
  • Sensitivity: -105 dBm for 12 dB SINAD, typical
  • Power Requirements: 12–18 V DC @ 150 mA, supplied by external power supply (tip positive)
  • Configuration: Impedance balanced
  • Maximum Audio Output Level (Ref. +/- 38 kHz deviation with 1 kHz tone):
    • XLR Connector: –13 dBV (into 600 Ohm load)
    • 1/4" Connector: –2 dBV (into 3 kOhm load)
  • Impedance:
    • XLR Connector: 200 Ohms
    • 1/4" Connector: 1 kOhms
  • Pin Assignments:
    • XLR Connector: 1 = Ground, 2 = Audio, 3 = No audio
    • 1/4" Connector: Tip = Audio, Ring = No audio, Sleeve = Ground
    • Image Rejection: > 70 dB, typical
    • Volume Adjustment Range: 0 dB to -25 dB
