Shure SLX24/SM58 SLX Series Single-Channel Wireless Mic System with SM58 Handheld

OUR PART #: SLX24/58 MFR #: SLX24/SM58-H5

Copied to clipboard

Part of the Shure SLX wireless systems family, the SLX24/SM58 system consists of a SLX2/SM58 Handheld Wireless Microphone/Transmitter and SLX4 Diversity Receiver. ...Read more

Shure SLX24/SM58 SLX Series Single-Channel Wireless Mic System With SM58 Handheld Image 1
Shure SLX24/SM58 SLX Series Single-Channel Wireless Mic System With SM58 Handheld
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Replacement Parts

Product Overview

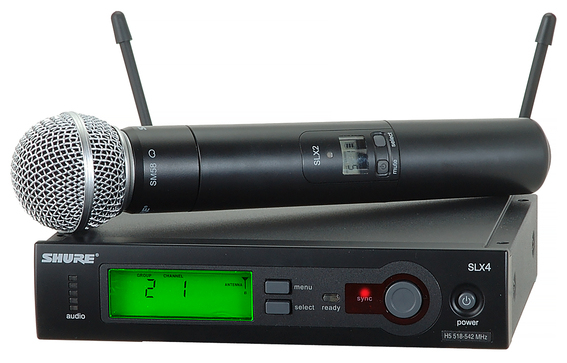

Part of the Shure SLX wireless systems family, the SLX24/SM58 system consists of a SLX2/SM58 Handheld Wireless Microphone/Transmitter and SLX4 Diversity Receiver. Sound installations and working bands need powerful wireless tools that can be set up quickly and used confidently. Shure's rugged SLX UHF Wireless Systems exceed these demands with innovative automatic setup features, such as auto frequency scan and transmitter setup, exceptional wireless clarity, and legendary Shure microphones. Supporting 20 compatible systems across multiple UHF frequency bands, SLX smoothly integrates into houses of worship, lecture halls, conference rooms, and mobile gear cases. The SLX4 receiver brings unprecedented ease of use to wireless with Automatic Frequency Selection and Automatic Transmitter Setup. With included rack hardware and detachable antennas, it’s ready for immediate installation right out of the box. The SLX2/SM58 is a unidirectional (cardioid) dynamic wireless vocal microphone engineered for professional vocal use in live performance, sound reinforcement, and studio recording. Its highly effective, integrated, spherical filter minimizes wind and breath pop, while the cardioid pickup pattern isolates the main sound source and minimizes unwanted background noise. The SM58 features a tailored vocal response for world standard sound response.

Includes

  • SM58 Microphone Cartridge
  • SLX2 Transmitter
  • SLX4 Diversity Receiver

Features

  • Includes SLX4 diversity receiver and SLX2 wireless mic with SM58 cartridge
  • 960 selectable frequencies across 24MHz bandwidth
  • XLR and 1/4" outputs
  • Frequency and power lockout
  • 5-segment audio meter

Specifications

  • SLX2 Transmitter
    • Maximum Input Level:
      • at –10 dB gain setting: +2 dBV
      • at 0 dB gain setting: –8 dBV
    • Gain Adjustment Range: 10 dB
    • RF Output Power
      • 10–30 mW (varies by region)
    • Dimensions: 10" X 2" dia. (254 X 51mm)
    • Weight: 10.2 oz (290 g) (without batteries)
    • Housing: Molded PC/ABS handle and battery cup
    • Power Requirements: 2 "AA" size alkaline or rechargeable batteries
    • Battery Life: up to 8 hours (alkaline)
  • SLX4 Receiver
    • Dimensions (HxWxD): 42 x 197 x 134 mm
    • Weight: 1 lb, 13oz (816 g)
    • Housing: galvanized steel
    • Sensitivity: -105 dBm for 12 dB SINAD, typical
    • Power Requirements: 12–18 V DC @ 150 mA, supplied by external power supply (tip positive)
    • Configuration: Impedance balanced
    • Maximum Audio Output Level (Ref. ±38 kHz deviation with 1 kHz tone):
      • XLR connector: –13 dBV (into 600 Ohm load)
      • 6.35 mm (1/4") connector: –2 dBV (into 3 kOhm load)
    • Impedance:
      • XLR connector: 200 Ohms
      • 6.35 mm (1/4") connector: 1 kOhm
    • XLR connector:
      • 1=ground
      • 2=audio
      • 3=no audio
    • 0.35 mm (1/4") connector:
      • Tip=audio
      • Ring=no audio
      • Sleeve=ground
    • Image Rejection: >70 dB, typical
    • Volume Adjustment Range: 0 dB to -25 dB
