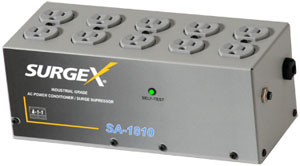

SurgeX SA1810
Power Conditioner

OUR PART #:  SA1810

The SA-1810 provides guaranteed surge protection for audio, video, computer and all sensitive electronic equipment.
Learn More
Our Price: $429.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

SurgeX SA1810
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SA-1810 provides guaranteed surge protection for audio, video, computer and all sensitive electronic equipment. The unit is rated for 15 amps, features ten industrial grade grounded AC receptacles, Impedance Tolerant® EMI/RFI filtering and can be fitted with optional mounting EMI/RFI filtering and can be fitted with optional mounting brackets. SurgeX patented advanced Series Mode Pro™ technology is superior to conventional MOV circuitry. It provides proven, reliable protection; blocking and containing multiple surges of up to 6,000 volts, unlimited current, without noise producing ground contamination. The SA-1810 meets the most stringent government specifications for AC powerline surge suppressors. The A-1-1 rating assures you of dependable protection from destructive spikes, surges, and inductive transients.

Features:

  • Made in U.S.A., Listed to UL 1449-2
  • Magnetic shielding steel enclosure
  • 6’ grounded 3-wire #14 line cord
  • Ten grounded receptacles: unswitched
  • Thermal circuit breaker overload protection
  • Self-test circuit with visual indicator
  • Dimensions (H x W x D): 4.0" x 10.22" x 4.2" (10.6 x26.0 x 10.7 cm)
  • Weight: 8.5 lbs. (3.8 kg)

Specifications:

  • Load Rating: 15 amps @ 120 volts.
  • UL 1449-2 Adjunct Classification Test Results: 1000surges, 6000 volts, 3000 amps, C1 pulse, measured suppressed voltage 290volts, no failures.
  • 1996 Federal Guidelines, Grade A, Class 1, Mode 1:SA-1810 meets guidelines.
  • Limiters (3 circuits): Series surge reactor currentlimiter. Cascaded autotracking dual polarity voltage limiter. Dual pulseinverters. 172 volts nominal (2 volts above peak line voltage, autotracking).
  • Filter (bi-directional, wave tracking): With 50 ohmload: 3 dB @ 3 kHz; 38 dB @ 100 kHz; 50 dB @ 300 kHz; 50 dB @ 5 MHz; 50 dB @30 MHz
  • Let-Through Slew Rate: 5000 volt/µs disturbancereduced to 28 volt/µs within power wave envelope; less than 10 volt/µs outsidepower wave envelope.
  • Snubber: Instant-reacting snubber for fast-risingsurges generated within the building.
  • Maximum Applied Surge Pulse Joule Rating: Unlimited,due to current limiting (8 x 20 µs).
  • Maximum Applied Surge Pulse Voltage: 6000 volts (1.2x 50 µs pulse), industry standard rating.
  • Maximum Applied Surge Pulse Current: 100,000 amperes (8 x 20 µs).Endurance: IEEE C62.41-1991 Category B3 (C1) Pulses: 1 kv>500,000; 3kv>10,000; 6 kv>1000 (NRTL-UL certified).
