Ace Backstage Co. BZ132SL-BK

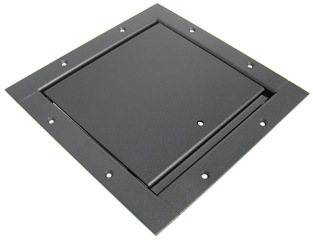

Stage Pocket, Standard Lid Assembly, Trim Bezel, Textured Black Finish

OUR PART #:  BZ132SL-BK

Ace Backstage Co....
Learn More
Our Price: $155.79
List Price: $195.79
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. BZ132SL-BK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Ace Backstage Co., Inc.'s high capacity Super Horizontal Panel Stage Pockets are the same size as the ACE Full Pockets with Back Box except they provide almost 3X the "Connectivity" capacity using a Horizontal Panel Design. The basic construction incorporates 3 sub-assemblies: 1) A unique Trim-Bezel lid assembly with spring loaded hinge pins and hinged cableway slot closure that mounts directly to the Back Box, 2) A set of panel mounting and A.C. barrier isolation raceway brackets, and 3) Super Pocket Body.

All ACE Super Stage Pockets Trim-Bezel Lid assemblies are heavy duty welded steel construction, with a 1/8" (nominally 11 ga. (.120")) thick CRS steel Lid and Mounting Flange. The 14 ga. (.071") thick CRS steel Super Pocket Body Back Box is precision die formed and jig welded. The Super Stage Pocket resists bending under even the most severe stage loads.

Removable spring loaded hinge pins permits easy exchange of lids for carpet lids, locking lids, standard lids, and other custom application lids. A generous cable way slot of 3/8" x 8" permits easy cable exit from the stage pocket, even for large gauge cables. A cableway slot closure channel closes the slot when not in use. The Super Stage Pocket has an easy installation into 10" x 10" cutout in the stage floor. Open easy access from top of the Super Stage Pocket to connector panels makes for easy installation.

A scratch/wear resistant finish, oven cured powder coat is electrostatically applied inside and outside the entire trim-bezel lid assembly. The Super Pocket Body Back Box comes with a clear zinc finish (Mil Spec QQ-Z-325E Type I, Class II). The Super Stage Pocket's solid rubber Lid Stops cradle the lid to prevent lid rattle.

Utilizing ACE's "Connectrix" System will allow mounting of up to 25 "Connectrix", Neutrik®, Switchcraft®, and/or Custom Connectors* in the Super Stage Pocket. The Horizontal Panel Design in the Super Pocket is designed for high capacity connectivity. In less than one square foot (10.5”x10.5”) the Super Pocket provides abundant panel space for up to 25 connectors* and a barrier isolated raceway ready for 2 duplex electric outlets (multiple circuits). This large connectivity capacity is possible using a Horizontal Panel Design and a set of panel mounting and A.C. barrier isolation raceway brackets. Generous combination conduit knockouts on four sides provides in-out-and-thru ways for both low voltage and AC electric cabling. Generous clearances above and below the panel(s) permit easy termination and access to an array of audio, video, data, communication and control connections. All Super Horizontal Panel Stage Pockets are UL Listed.

*Note: Connector capacity limitations apply depending on connectors and panels used.

Applications:

  • Educational
  • Institutional
  • House of Worship
  • Audio
  • Communications
  • Control
  • Data
  • Electric AC power
  • Video

Features:

  • Extra large capacity - supports PSW-100, PNL-100, PNL-120, and PNL-140 Series panels
  • Durable construction
  • Spring-loaded hinge pins
  • Cable way slots
  • Easy installation
  • Decorator finishes

Specifications:

  • Body Size: 10.000” W x 6.000” H x 10.000” D
  • Lid & Mounting Flange Size: 10.500” W x 0.937” H x 10.500” D
  • Connector Capacity: Up to 25 “Connectrix”, Neutrik®, or Switchcraft®*
  • Cutout Dimensions: 10.000" W x 10.000" H
  • Material: CRS Steel and/or Solid Half Hard Brass
  • Panel Capacity:
      -  (4) #PNL-100 Series “CONNECTRIX” Panels OR
      -  (4) #PSW-100 Series Switchcraft® Panels OR
      -  (2) #PNL-120 Series "CONNECTRIX" Panels OR
      -  (1) #PNL-140 Series “CONNECTRIX” Panel
