Telex HT-500D

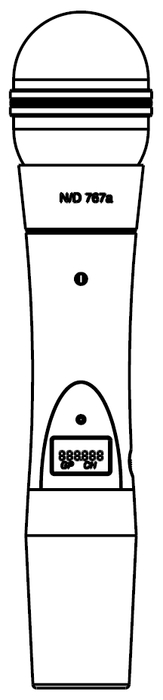

UHF Synthesized Wireless Handheld Transmitter with 767a Dynamic Microphone Element

OUR PART #:  HT500D

Telex's HT-500D is a UHF synthesized wireless handheld transmitter that features 1112 selectable channels, on/off switch, and the EV NDYM 767a dynamic microphone element with VOB.
Learn More
Selected Model Price: $315.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Telex HT-500D
Select model: (shipping times are approximate)
Qty:

Similar Products

Telex's HT-500D is a UHF synthesized wireless handheld transmitter that features 1112 selectable channels, on/off switch, and the EV NDYM 767a dynamic microphone element with VOB. It operates on a single 9V battery (sold separately). It's designed to work with Telex's FMR-500 receiver (sold separately).

Telex HT-500D Specifications:

  • Radiated Output: 30 mW Typical
  • Microphone Head: N/D 767a supercardioid N/DYM dynamic
  • Standard Lavalier Microphone: ELM-22 Omni-Directional Condenser
  • TA4F Connector Wiring: Pin 1: Ground; Pin 2 Mic In put; Pin 3: +5V bias; Pin 4: +5V bias through a 3 kOhm resistor
  • Audio Gain Adjustment Range: 26 dB
  • Power Requirements: 9 Volt Alkaline Battery
  • Battery Life (Typical): >8 hours with 9-Volt Alkaline Typical
  • Antenna: Internal 1/2 wave
  • Dimensions: 9.4" Long (24.0cm)
