TOA D971E
Terminal Block Output Module for TOA D-901 Digital Mixer

OUR PART #  D971E

Our Price: $244.33
List Price: $302.36
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

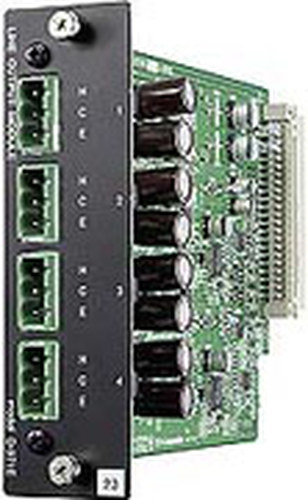

The D-971E has 4-channel line outputs with removable terminal block connectors.

Specifications:

  • Output: 4 channels, +4dB, adaptable load of over 600ohm, electronically-balanced
  • Connector Type: Removable Terminal Block
  • D/A Converter: 24 bits
  • Sampling Frequency: 48kHz
  • Frequency Response: 20Hz – 20kHz, ±1dB
  • Dynamic range: Over 100dB (IHF-A weighted)
  • Total Harmonic Distortion  Under 0.05%
  • Finish, Panel: Pre-coated steel plate, black, 30% gloss
  • Dimensions (W x H x D): 35 x 119.5 x 178.4 mm
  • Weight: 140g

TOA D971E
Terminal Block Output Module for TOA D-901 Digital Mixer

OUR PART #  D971E

Product Information:

The D-971E has 4-channel line outputs with removable terminal block connectors.

Specifications:

  • Output: 4 channels, +4dB, adaptable load of over 600ohm, electronically-balanced
  • Connector Type: Removable Terminal Block
  • D/A Converter: 24 bits
  • Sampling Frequency: 48kHz
  • Frequency Response: 20Hz – 20kHz, ±1dB
  • Dynamic range: Over 100dB (IHF-A weighted)
  • Total Harmonic Distortion  Under 0.05%
  • Finish, Panel: Pre-coated steel plate, black, 30% gloss
  • Dimensions (W x H x D): 35 x 119.5 x 178.4 mm
  • Weight: 140g
