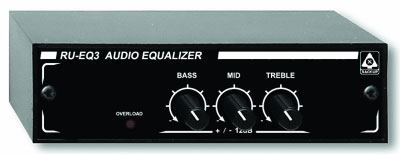

Radio Design Labs RU-EQ3
3-Band Equalizer

OUR PART #  RUEQ3

Our Price: $181.75
List Price: $243.15
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Radio Design Labs' RU-EQ3 features a balanced bridging input, which may be connected unbalanced if desired. The output driver is 150 O balanced, and is intended to drive unbalanced or balanced lines of 150 O or higher impedance. Front-panel knobs provide active equaliza tion, each controlling a separate audio band. These bands were carefully selected to yield a module that works effectively in a wide variety of systems. Each band’s center frequency can be either boosted or attenuated by at least 12 dB.

The Q of the low and high band equalizers was selected so that those controls can be functionally considered as a total bass band or treble band control. The RU-EQ3 adds a third control. This midrange control is optimized to voice band adjustment, with the overlap tailored to provide smooth operation for wideband music applications. The RU-EQ3's OVERLOAD indicator flashes if either the input or output stage clips.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • 3-Band Audio Equalizer
  • Custom Tailored Audio Bandwidth
  • User-Accessible Adjustments
  • High-Density Rack-Mount Convenience
  • Low-Noise, Low-Distortion Equalizer

Specifications:

  • Input: 100 kO balanced or unbalanced bridging; line-level
  • THD+N: < 0.030%; 0.010% typ. (1 kHz, +4 dBu reference; flat response)
  • CMRR: > 60 dB (100 Hz)
  • Frequency Response: 20 Hz to 22 kHz (EQ set flat; +/- 0.5 dB into 600 Ohm); 10 Hz to 22 kHz (EQ set flat; +/- 0.5 dB into 10 kOhm)
  • Noise: < -80 dB (below +4 dBu)
  • Center Frequencies: Low Band: 80 Hz Mid Band: 1 kHz High Band: 30 kHz
  • Bandwidth: Low Band: 20 Hz to 300 Hz Mid Band: 200 Hz to 7 kHz High Band: 3 kHz to 30 kHz
  • Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 25mA
