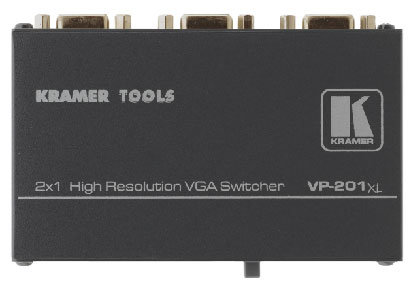

Kramer VP-201XL
2x1 Computer Graphics Video (VGA/XGA) Mechanical Switcher

OUR PART #:  VP201XL

The Kramer VP-201xl is a new version of the Kramer VP-201, a high quality 2x1 mechanical switcher designed for VGA/XGA/UXGA signals, using high density 15 pin HD connectors.
Learn More
Our Price: $152.00
List Price: $190.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-201XL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer VP-201xl is a new version of the Kramer VP-201, a high quality 2x1 mechanical switcher designed for VGA/XGA/UXGA signals, using high density 15 pin HD connectors. It accepts two inputs and allows the user to select either input using a switch located on the front panel. High quality switching components and careful circuit design are used to ensure very high bandwidth and minimal crosstalk. This new, ergonomically redesigned version using a strip line designed PCB, achieves a signal bandwidth 1300 MHz (1.3GHz!). The passive design of the VP-201xl eliminates the need for a power supply, and makes it possible to operate “backwards” by taking a single input and toggling between two displays. Note that it cannot route the signal to two ports simultaneously. The VP-201xl is part of the Kramer TOOLS family of high quality, cost effective solutions for a variety of applications.

Features:

  • High Bandwidth - 1300MHz (-3dB).
  • HDTV Compatible.
  • Mechanical (Passive) Switching - No power required.
  • Bidirectional Operation - Can be used as a 2x1 switcher (2 inputs, 1 output) or a 1x2 switcher (1 input, 2 outputs).
  • Compact Kramer TOOLS™ - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

Specifications

  • Inputs: 2 analog red, green, blue signals - 0.7 Vpp/75 ohms, H & V sync, TTL level, on HD15F connectors
  • Outputs: 1 analog red, green, blue signals - 0.7 Vpp/75 ohms, H & V sync, TTL level, on HD15F connector
  • Video Bandwidth (-3dB): 1300 MHz
  • Switching Method: Mechanical
  • Dimensions (W x D x H): 4.7" x 2.95" x 0.98" (12 x 7.5 x 2.5 cm)
  • Weight: 0.58 lbs (0.26 kg) approx.
  • Accessories: Mounting bracket
  • Options: RK-T1, RK-T3, 19 inch rack adapters
