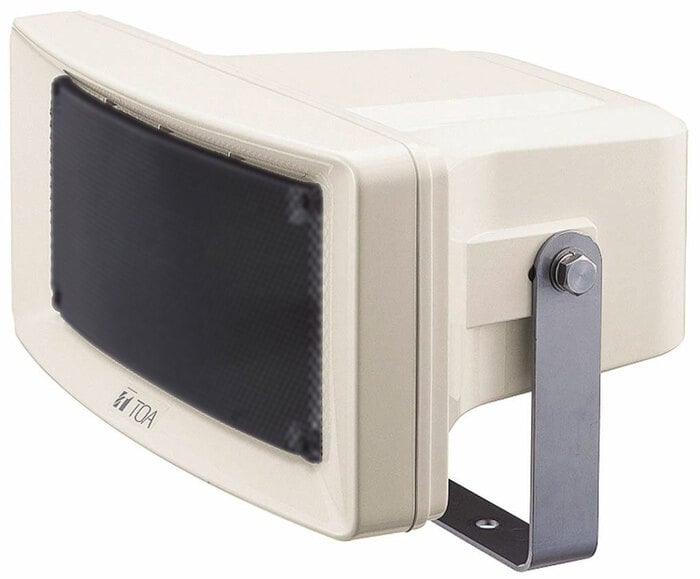

TOA CS-154 Wide-Ranging 15W Weatherproof Paging Speaker

TOA’s CS Series of Wide-Range Paging Speakers are ideal for indoor and outdoor commercial sound system applications for voice paging, background music and tone signaling distribution. Compared to traditional metal paging horns, CS Series speakers offer wider frequency range and superior sound quality. The 15W CS-154 includes a built-in 70.7V / 100V transformer with screwdriver-adjustable power taps. All CS models are fully weather-resistant to withstand demanding environmental conditions with a sealed enclosure, full-range moisture-resistant cone speaker, stainless-steel mounting hardware and a protective mesh grille. The enclosure is also coated with polyurethane resin paint to resist the fading effects of prolonged exposure to ultraviolet light. The CS Series Wide-Range Paging Speakers are backed with a five-year warranty. * Note: For outdoor installation, it is recommended that they are installed under roofs, eaves, or in other locations not directly exposed to rain or snow.

Applications:

• Boats
• Churches
• Industrial
• Mobile Vehicles
• Parking Facilities
• Parks
• Schools
• Security
• Sporting Facilities
• Swimming Pools

Features:

• 15W weather-resistant, wide range paging speaker
• For use in boats, churches, industrial settings, emergency vehicles, parking facilities, schools, etc.
• Weather-resistant to withstand demanding environments
• Constant directivity coverage
• High sensitivity: up to 98dB (1W @ 1m)

Specifications:

• Rated Input: 15W
• Rated Impedance:
• 100V line: 670Ω (15W), 1kΩ (10W), 2kΩ (5W)
• 70 V line: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W), 2kΩ (2.5W)
• Sensitivity: 97dB (1W @ 1m)
• Frequency Response: 150 - 15,000Hz
• Speaker Component: 12cm cone-type
• Horizontal Directivity:
• Constant directivity horn 90° (±45° horizontal from front axis) 93dB or more (1W @ 1m), 3kHz at ±45°
• Speaker Cord: 2-core cabtyre cord with diameter of 6 mm
• Operating Temperature: -20°C to +55°C
• Dust / Water Protection: IP65
• Finish:
  • Horn, cover: ABS resin, off-white, paint
  • Bracket: Stainless steel
  • Net: Aluminum, gray, paint
  • Screw: Stainless steel
• Dimensions: 366 (W) × 230 (H) × 272 (D) mm
• Weight: 2.8kgs

Notes:

Do not install the speaker face-up from a horizontal plane nor in such a way that the paper cone is exposed to direct sunlight. If water accumulates on the paper cone, or ultraviolet rays are radiated on it, this may cause the paper cone to deteriorate, leading to speaker malfunction.
