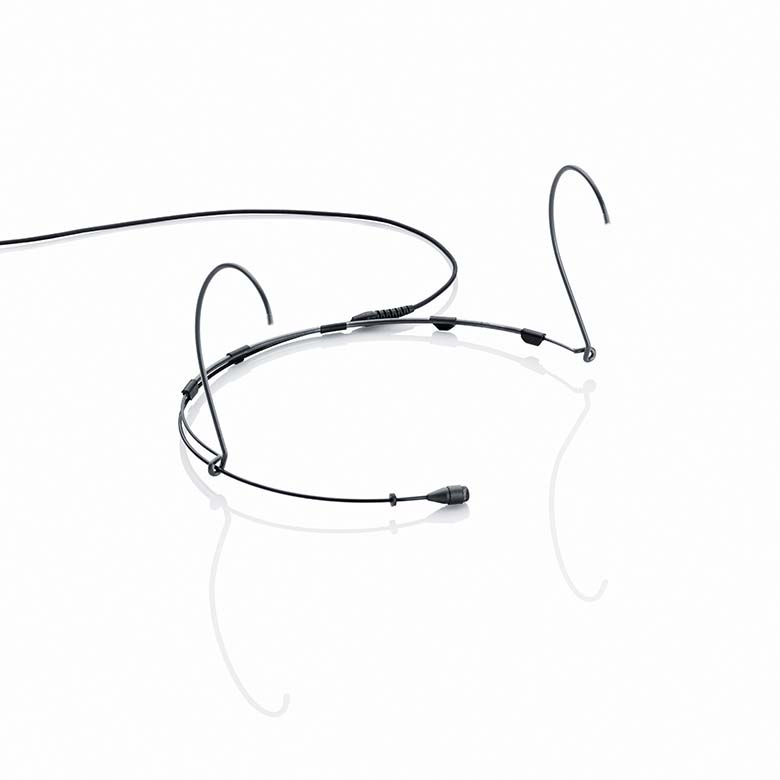

DPA Microphones 4066-B
Black Omnidirectional Adjustable Headset Microphone

OUR PART #:  4066-B

The 4066 is a flexible miniature microphone solution, that features very easy and fast adjustment possibilities.
Learn More
Our Price: $669.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones 4066-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 4066 is a flexible miniature microphone solution, that features very easy and fast adjustment possibilities. The headband construction is unique in design, because it gives the user the choice between left and/or right mounting and color change. It is also possible to use the MMB4066 Miniature Microphone Boom separately, in applications where the headband is not needed.

The 4066 offers a clean and transparent sound quality with lots of headroom. It uses a prepolarized omnidirectional cartridge element with a 5.4mm vertical diaphragm. It is specially designed for maximum performance and comfort under the often difficult conditions when mounted directly on the human body.

Attention has been paid to the humidity problems that often occur in theatrical applications and to the light weight construction of the headband itself. A double vent protection system, a drop stopper on the tube, together with water resistant materials inside the microphone, makes it more than difficult for the humidity to cause the headband Microphone to fail. The headband surface is matgold plated and headband earhooks are covered with a silicon hose.

The sensitivity is 6mV/Pa to match the level of the human voice to the general input sensitivity of most wireless transmitters. The noise floor of the Type 4066 is 26dB(A) re. 20 µPa and if powered correctly the microphone will be able to handle sound pressure levels up to 144dB SPL before clipping occurs. A wide range of connection adapters makes it possible to use the 4066 with most of the professional wireless systems available plus 48 V phantom XLR connection.

DPA Microphones 4066 Specifications:

  • Directional characteristics: Omidirectional
  • Frequency range:
    • Soft boost grid: 20Hz-20kHz ±2dB, 3dB soft boost at 8-20kHz
    • High boost grid: 20Hz-20kHz ±2dB, 10dB boost at 12kHz
  • Sensitivity: Nominally 6 mV/Pa ± 3dB at 1kHz
  • Equivalent noise level A-weighted: Typ. 26dB(A) re. 20 µPa (max. 28dB(A))
  • Equivalent noise leve l CCIR 468-1: Typ. 38dB (max. 40dB)
  • Maximum sound pressure level: 144dB SPL peak before clipping
  • Cable length: 1.8m (5.9ft)
  • Total harmonic distortion: 123dB SPL peak (<1% THD)
  • Cable drive capability: Up to 300m (984ft)
  • Cartridge lower limiting frequency (-3db): 20Hz
  • Output impedance: 30-40 Ohm
  • Weight: 14g (0.5oz) incl. cable and MicroDot connector
  • Microphone length: 12.7mm (0.5in)
  • Microphone diameter: 5.4mm (0.21in)
