West Penn 25227B-500
500ft 2-Conductor 12 Gauge Extra Flexible Plenum Cable

OUR PART #:  25227B-500

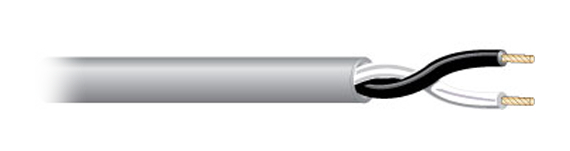

West Penn's 25227B cable features 12/2 Stranded bare copper conductors, and is unshielded with an overall jacket.
Learn More
Our Price: $224.23
List Price: $225.66
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn 25227B-500
Qty:
In Stock
Similar Products

West Penn's 25227B cable features 12/2 Stranded bare copper conductors, and is unshielded with an overall jacket.

Applications: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music).

West Penn 25227B Specifications:

  • Length: 500ft
  • Conductor: 12 AWG Bare Copper
  • Stranding: 19x25
  • Insulation Material: Flex Plenum PVC
  • Insulation Thickness: 0.010'' Nom.
  • Number of Conductors: 2
  • Shield: None
  • Drain: None
  • Jacket Material: Flex Plenum PVC
  • Jacket Thickness: 0.015'' Nom.
  • Overall Cable Diameter: 0.256'' Nom.
  • Approximate Cable Weight: 54 lbs/1000ft
  • Flame Rating: NFPA 262 Flame Test
  • Temperature Rating: -10°C To +60°C
  • Operating Voltage: 150 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 36 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 1.7 Ohms/1000ft Nom.
  • Insulation Colors: Black, White
  • Jacket Color: Gray
  • RoHS Compliant: Yes
