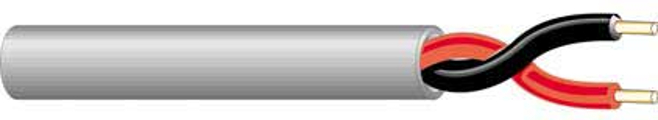

West Penn 221 [PRICED PER FOOT]
22AWG 2-Conductor Jacketed Stranded Wire

OUR PART #:  221-BY-THE-FOOT

22/2 stranded bare copper conductors, unshielded with an overall jacket.
Learn More
Our Price: $0.13
List Price: $0.16
Save up to 43% when you order by quantity!
  • Buy 50: $0.11 each.
  • Buy 200: $0.10 each.
  • Buy 400: $0.09 each.
Be the first to review.

This product must be purchased in multiples of 10

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn 221 [PRICED PER FOOT]
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

22/2 stranded bare copper conductors, unshielded with an overall jacket.

Applications (Indoor)

  • Intercom Systems
  • Security Systems
  • Sound and Audio
  • Background Music
  • Power - Limited Control Circuits

West Penn 221 Features:

  • ASTM bare copper
  • PVC insulation
  • Short overall twist lengths
  • PVC fillers as required
  • Polyester binders as required

West Penn 221 Specifications:

  • Conductor 22 AWG Bare Copper
  • Stranding 7x30
  • Insulation Material PVC
  • Insulation Thickness 0.008'' Nom.
  • Number of Conductors 2
  • Shield None
  • Drain None
  • Jacket Material PVC
  • Jacket Thickness 0.015'' Nom.
  • Overall Cable Diameter 0.120'' Nom.
  • Approximate Cable Weight 11 Lbs/1M' Nom.
  • Flame Rating UL 1666 Riser Flame Test
