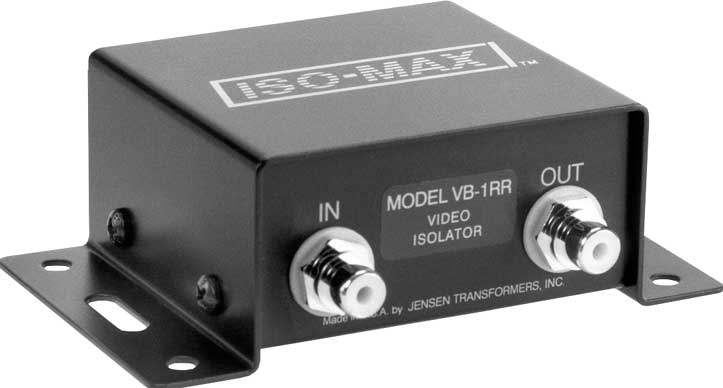

Jensen Transformers VB1-RR Baseband-Composite Video Isolator with RCA Connectors

When inserted into standard 75 Ohm video cabling, this transformer-based isolator eliminates video "hum bars", as well as the often-associated audio "hum" or "buzz" in multimedia entertainment systems, by breaking the so-called "ground loop." Mounting holes allow easy horizontal or vertical mounting to standard rack rails.

Specifications

• Very high ground isolation: 120 dB CMRR typ at 60 Hz
• Wide bandwidth: -3 dB at 10 Hz and 20 MHz
• High input to output withstand voltage: 350 V RMS min at 60 Hz
• Precision impedance: typical VSWR under 1.22 up to 20 MHz
• Low insertion loss: 0.72 dB typical
• 15 MHz Bandwidth keeps pictures looking sharp
• High quality gold-plated connectors for reliability
• Low insertion loss maintains maximum signal level
• Provides 120 dB of isolation at 60Hz
