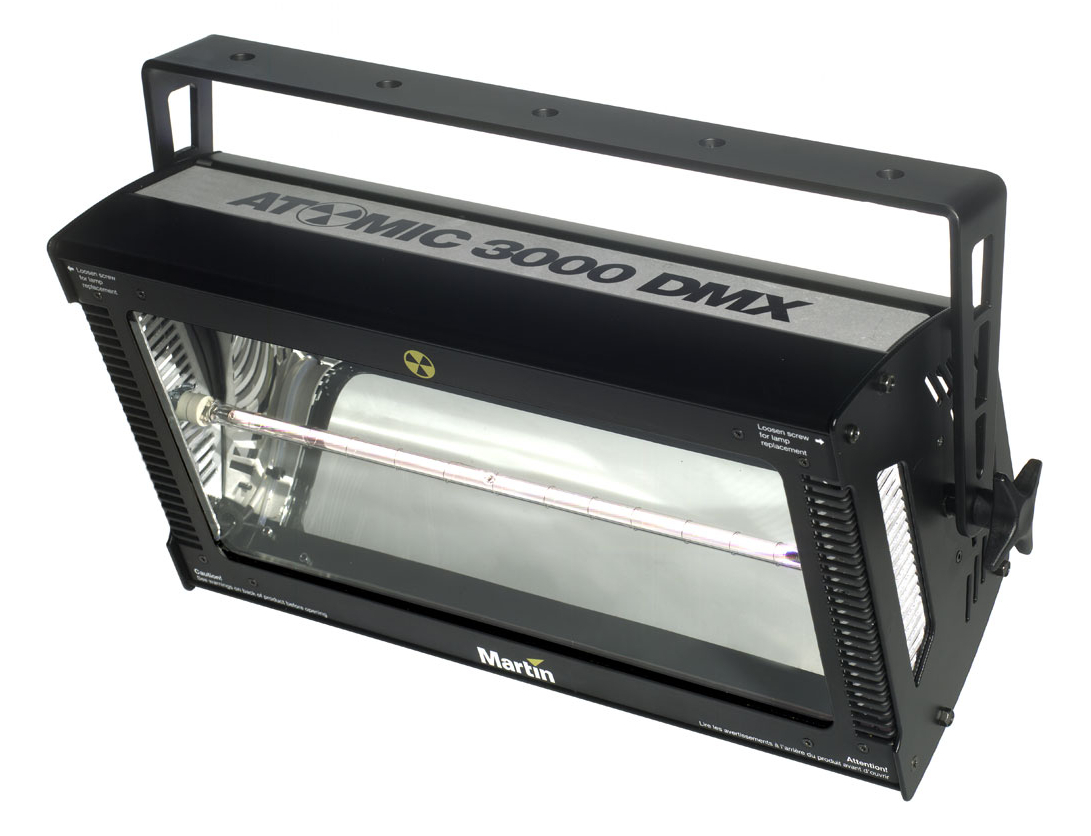

Martin Professional ATOMIC 3000 DMX
3000W 120V DMX Strobe Light Fixture

OUR PART #:  ATOMIC-3000/120

The Atomic 3000 DMX From Martin is a powerful and rugged, 3000 W high-impact strobe.
Learn More
Our Price: $1,010.00
Call for Special Sale Price!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Martin Professional ATOMIC 3000 DMX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atomic 3000 DMX From Martin is a powerful and rugged, 3000 W high-impact strobe. This model (P/N 90424300) is a 120V version that features DMX control, steel housing construction and uses a MAX-7 Xenon lamp.

Martin Atomic 3000 DMX Includes:

  • MAX-15 Xenon lamp (installed, EU model): P/N 97010307
  • MAX-7 Xenon lamp (installed, US model): P/N 97010308
  • User manual: P/N 35000094

Martin Atomic 3000 DMX Specifications:

  • Physical:
    • Length: 425 mm (16.7 in.) without bracket
    • Width: 245 mm (9.6 in.) without bracket
    • Height: 240 mm (9.4 in.) without bracket
    • Weight: 7.5 kg (16.5 lbs.) without bracket
  • Dynamic Effects:
    • Variable strobe: 0 - 650 ms (50 Hz supply), or 0 - 530 ms (60 Hz supply)
    • Strobe rate: 0 - 25 flashes/second (50 Hz supply), 0 - 30 flashes/second (60 Hz supply)
    • Blinder effect: Continuous with auto fade
    • Strobe intensity: Blackout - maximum
    • Special effects: Ramp up, ramp down, ramp up-down, random flash, lightning, spikes, blinder, single flash
  • Control and Programming:
    • Control options: DMX, stand-alone, multi-fixture chase (with Detonator remote), MC-1
    • DMX channels: 1, 3, and 4 channel modes
    • Stand-alone control: Via N.O. or N.C. SPST switch
    • Stand-alone options: Selectable flash rate or blinder effect
    • Setting and addressing: DIP switch
    • DMX Compliance: USITT DMX512/1990
    • Receiver: RS-485
  • Lamp:
    • Type: Xenon discharge
    • Approved lamps: MAX-15 Xenon (200-240 V power), MAX-7 Xenon (100-120 V power)
  • Construction:
    • Housing: Steel
    • Finish: Electrostatic powder-coated
    • Color: Black
  • Installation:
    • Minimum distance to combustible materials: 0.5 m (1.7 ft.)
    • Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
    • Minimum clearance around fan and air vents: 0.1 m (0.4 ft.)
    • Orientation: Any
    • Mounting points: Five 12 mm (0.5 in.) holes in mounting bracket
  • Connections:
    • Power connection: 1.5 m (4.9 ft.) cable tail, 14 AWG
    • DMX data in/out: 3-pin and 5-pin XLR sockets
  • Electrical:
    • AC power (MAX-7 model): 100-120 V nominal, 50/60 Hz
    • AC power (MAX-15 model): 200-240 V nominal, 50/60 Hz
    • Peak current consumption: 33 A
    • Typical current consumption (MAX-15, high power mode): 8 A
    • Main fuse (all AC power voltages): 20 AT (slow blow), 250 V
    • Power supply unit: Auto-ranging electronic switch-mode
    • AC mains power cable: 14 AWG or 2.5mm2
  • Thermal:
    • Maximum ambient temperature (Ta max.): 40° C (104° F)
    • Minimum ambient temperature (Ta min.): 5° C (41° F)
    • Maximum lamp socket temperature: 120° C (248° F)
  • Approvals:
    • EU safety: EN 60598-1, EN 60598-2-17
    • EU EMC: EN 50 081-1, EN 50 082-1
    • US safety: ANSI/UL 1573
    • Canadian safety: CSA C22.2 No. 166
