Product Overview

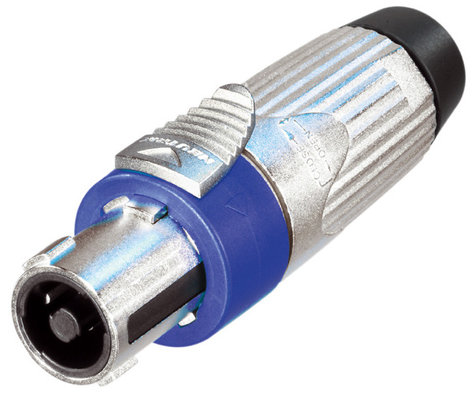

The Neutrik NLT4FX 4-pole female cable connector features nickel housing and chuck-type strain relief. The speakon STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all-metal housing.
Features
- Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
- Robust and durable all metal housing
- Sealing ring provides weatherproof IP54 rating
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available speakON products
Electrical Specifications
- Rated current/contact: 40 A rms continous, 50 A audiosignal, duty cycle 50%
- Dielectric strength: 4kV peak
- Rated insulation voltage: 250 V ac
- Contact resistance after lifetime: < 2 m ohm
- Insulation resistance: > 10 G ohm
Mechanical Specifications
- Retention method: Quicklock with latch
- Lifetime (mating cycles): > 5000
- Cable anchoring: NEUTRIK® chuck principle
- Cable O.D. range: 9 - 16 mm
- Max. wire size: 6mm² / 10 AWG (stranded), soldering
- Solderability: complies with IEC 68-2-20
Material Specifications
- Contacts: Brass CuZn39Pb3
- Housing: Zinc diecast ZnAl4Cu1
- Insert: Poliyamide PA 6 30% GR
- Bushing: Zinc diecast ZnAl4Cu1
- Chuck: Polyacetal POM
- Locking element: Zinc diecast ZnAl4Cu1
- Temperature range: -30°C to +80°C
- Flammability: UL94HB
- Protection class (mated condition): IP54 (8 pole: IP52)
