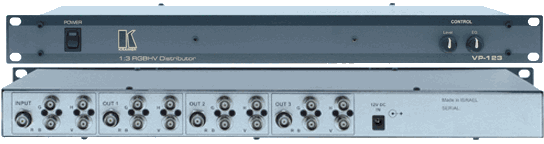

Kramer VP123
1x3 RGBHV Distribution Amplifier w/BNC Conn

OUR PART #:  VP123

The VP-123 and VP-123V are high performance amplifiers for computer graphics video signals with resolutions ranging from VGA through UXGA and higher.
Learn More
Our Price: $456.00
List Price: $570.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP123
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VP-123 and VP-123V are high performance amplifiers for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. It takes one input, provides correct buffering and isolation, and distributes the signal to three identical outputs.

High Bandwidth - 450MHz (- 3dB).  HDTV Compatible.  Inputs - VP-123 (5 BNCs)   VP-123V (HD-15).  Level (Gain) and EQ (Peaking) Controls. Standard 19” Rack Mount Size - 1U.

INPUT:   1 x 3 - component /RGB/ composite video, 1Vpp/75 ohm; on BNC connectors (VP-123) or on an HD15F connector (VP-123V) H Sync and V Sync, TTL level.   OUTPUTS:   3 x 3 - component /RGB/ composite video, 1 Vpp/75 ohm; on BNC connectors 3 x H Sync, V Sync TTL level on BNC connectors.   MAX. OUTPUT LEVEL:   2.1 Vpp /75 ohm; (R, G, B).   BANDWIDTH (-3dB):   450MHz.   DIFF. GAIN:   0.13%.   DIFF. PHASE:   0.02 Deg.   K-FACTOR:   0.05%.   S/N RATIO:   82.3 dB.   CROSSTALK:   55.9 dB, all hostile.   CONTROLS:   Level: - 0.8 to + 6.3 dB; EQ.: 0 to + 13.6 dB @ 50MHz.   COUPLING:   DC.   POWER SOURCE:   12 VDC, 100 mA.   DIMENSIONS:   19 inch (W), 7 inch (D), 1U (H) rack mountable.   WEIGHT:   2.36 kg. (5.2 lbs.) approx.   ACCESSORIES:   12 VDC power supply.
