Kramer VP2X2
2x2 VGA/XGA/UGA & Audio Matrix Switch

OUR PART #:  VP2X2

The VP-2x2 is a high performance matrix switcher for computer graphics video signals, with resolutions ranging from VGA through UXGA and higher...
Learn More
Our Price: $552.00
List Price: $690.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP2X2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

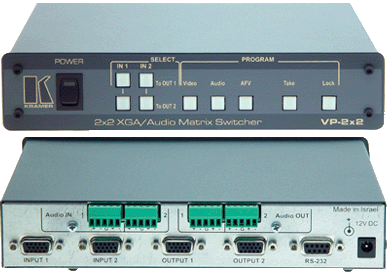

The VP-2x2 is a high performance matrix switcher for computer graphics video signals, with resolutions ranging from VGA through UXGA and higher, and balanced stereo audio signals. It can route either or both inputs to either or both outputs simultaneously.

High Bandwidth - 400MHz (- 3dB) fully loaded.  HDTV Compatible.  Control - Front panel & RS-232 (K-Router™ Windows® - based software is included).  Front Panel Control Lockout.  Take Button - Execute multiple switches all at once.  Audio Breakaway Switching.  Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-80 adapter.

INPUTS:   2 VGA/UXGA on HD15F connectors. 2 balanced audio stereo on detachable terminal block connectors.   OUTPUTS:   2 VGA/UXGA on HD15F connectors. 2 balanced audio stereo on detachable terminal block connectors.   MAX. OUTPUT LEVEL:   Video: 1.7 Vpp; Audio: 7.2 Vpp.   BANDWIDTH (-3dB):   Video: 400 MHz, Audio: 100 kHz.   DIFF. GAIN:   0.05%.   DIFF. PHASE:   0.05 deg.   K-FACTOR:   0.05%.   S/N RATIO:   Video: 78.3dB; audio: 95dB, unweighted.   CROSSTALK:   Video: - 43dB; audio: 77dB @ 1 kHz.   CONTROLS:   Front panel touch switches, RS-232.   COUPLING:   DC.   AUDIO THD + NOISE:   0.049%.   AUDIO 2nd HARMONIC:   0.003%.   POWER SOURCE:   12 VDC, 150 mA.   DIMENSIONS:   22cm x 18cm x 4.5 cm (8.7” x 7” x 1.7”) W, D, H, (half 19”, 1U).   WEIGHT:   1.1 kg (2.4 lbs.) approx.   ACCESSORIES:   Power supply.   OPTIONS:   19” rack adapters RK- 80 (holds two units

To be the first to review this item, click here.
