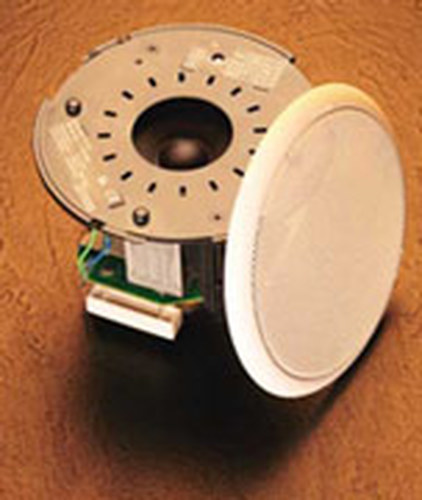

Full-Range Ceiling Speaker, 4", 6W

OUR PART #:  F1522SC

TOA F-Series ceiling speakers are ideal for music and paging applications such as audio/visual, business music or retail sound systems.
Learn More
Our Price: $61.55
List Price: $76.16
You save 19%!
Write the first review.
In Stock
Related Products

TOA F-Series ceiling speakers are ideal for music and paging applications such as audio/visual, business music or retail sound systems. The new lineup consists of six models with features and price points to suit premium-to-economy applications; all built with the same high quality and reliability the industry has come to expect from TOA products. Key benefits include smooth off-axis coverage, versatile range of models, ease of installation, and competitive pricing. For premium wide-dispersion performance, the new F-122CU is a 5” full-range processed ceiling speaker, UL1480/2043-Listed for Fire Protective, General Purpose Signaling and Air-Handling Spaces. Other new full-range models include the F-2322C with 5” full-range driver and the ultra-compact F-1522SC with 4” full-range driver.

Three new two-way co-axial models include the F-2852C with 6.5” cone driver, the F-2352C with 5” cone driver and the economy F-2352SC with 5” cone driver. Each model has a special diffusor with built-in dome tweeter for superior co-axial performance. The F-122CU, F-2322C, F-2352C and F-2852C all include integral metal back-cans with safety cable, quick-mount hardware and removable Phoenix-style connectors with loop-through points for adjacent speakers. Built-in overload protection circuitry ensures outstanding reliability.

All six new models include built-in multi-tap transformers with 8/16 ohm direct modes, front baffle power tap selection and double-locking, paintable grilles. Accessories include HY-TB1 tile bridge rails, HY-TR1 trim ring and HY-BC1 surface back-can. The F Series ceiling speakers are individually packaged and backed with a five year warranty.


  • Ultra-compact – only 4.2”(106 mm) deep
  • 4” full-range driver
  • Wide-dispersion: 160º conical (1-4k Hz avg.)
  • Frequency Response: 65 to 18k Hz
  • Sensitivity: 88 dB SPL (1 W, 1 m)
  • Continuous Power Handling: 18 W
  • Built-in 25/70.7/100 V transformer (6 W max.) with 8/16 ohm direct modes
  • Convenient power tap selector on front baffle
  • Four pole push-terminal input connector
  • Low-profile, paintable grille
  • Dust cover to protect components
  • Optional HY-RR1 mounting C-ring
  • Five year warranty
Ceiling Mount Ring for F1522SC
TOA HYRR1 Ceiling Mount Ring for F1522SC
Optional mounting ring for TOA F-1522SC Ceiling Speaker.
