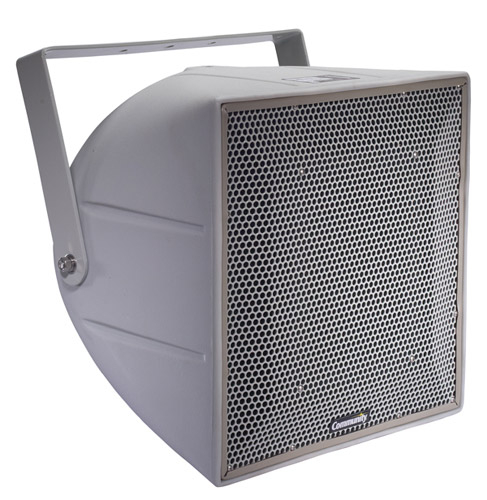

R Series 12" 3-Way Weather-Resistant Loudspeaker in Light Grey

OUR PART #:  R.5HP

The Community R.5HP is a three-way horn loaded weather-resistant loudspeaker system engineered to provide maximum intelligibility from a most compact design.
Learn More
Our Price: $1,358.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community R.5HP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Community R.5HP is a three-way horn loaded weather-resistant loudspeaker system engineered to provide maximum intelligibility from a most compact design. By the packaging of Community's well-known M200 midrange driver coaxially within the mouth of the 12" LF horn, an extremely powerful tool for voice announcement systems was created. High frequencies are handled by Community's non-metallic diaphragm UC1 1" exit HF driver. The M200/UC1 creates effortless voice-power with HF sparkle that must be heard to be appreciated. No longer do audiences need to experience the unpleasant sound of "honky" re-entrant paging horns. The R.5HP can act as both a musical entertainment loudspeaker and a voice PA loudspeaker simultaneously. Each system is backed by Community's five-year product warranty and fifteen-year enclosure warranty.

Community R.5HP Features:

  • Weather-resistant, rotomolded UV enclosure
  • Weather-treated drivers and crossovers
  • Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
  • Pattern control down to 630 Hz
  • High efficiency
  • Integral mounting points
  • High power passive crossover
  • Five-year product warranty / Fifteen-year enclosure warranty

Community R.5HP Specifications:

  • Loudspeaker Type:  3-way, horn loaded coaxial, weather-resistant
  • Operating Range:
    • 90 Hz to 16 kHz
    • 125 Hz to 12500 Hz (+/- 6 dB)
  • Max Input Ratings:  200W continuous, 500W program, 35 volts RMS, 77 volts momentary peak
  • Recommended Power Amplifier:  420W to 600W @ 6 ohms
  • Sensitivity (1W/1m):  106 dB SPL (125 Hz to 10 kHz 1/3 octave bands); 107 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output:  129 dB SPL / 136 dB SPL (peak)
  • Nominal Impedance:  6 Ohms
  • Minimum Impedance:  3.2 Ohms @ 11220 Hz
  • Nominal –6dB Beamwidth:  60° H (+32° / -17°, 2 kHz to 10 kHz); 40° V (+33° / -1°, 2 kHz to 10 kHz)
  • Axial Q / DI:  20.5 / 13.1, 2 kHz to 12.5 kHz
  • Crossover Frequency:  600 Hz / 4 kHz
  • Recommended Signal Processing:  70 Hz high pass filter
  • Drivers:
    • LF:  (1) 12” weather treated, Ferrofluid-cooled
    • MF:  (1) M200, Ferrofluid-cooled
    • HF:  (1) 1” exit, titanium free, Ferrofluid-cooled
  • Driver Protection:  None
  • Input Connection:  12 foot (4 m) SJOW #16 gauge
  • Controls:  None
  • Enclosure:  Rotomolded LLDPE, light grey
  • Mounting/Rigging Provisions:  (5) 3/8-16 rigging points
  • Grille:  3-layer WeatherStop™, light grey (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
  • Environmental Performance:  IEC529 IP55W rating with a minimum 5-degree downward aiming angle
  • Required Accessories:  None
  • Supplied Accessories:
    • (1) Yoke bracket, light grey
    • (1) Aiming strap
  • Optional Accessories:
    • TRC400 transformer (400W 70/100/140V)
    • PMB Series pole mount brackets
  • Dimensions:
    • Height:  16 inches (406.4 mm)
    • Width:  16 inches (406.4 mm)
    • Depth:  16.187 inches (411.15 mm)
  • Weight:  42.3 lbs (19.2 kg)
