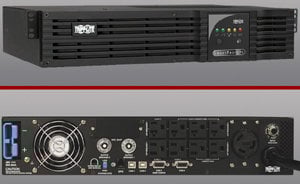

Tripp Lite SMART3000RM2U
UPS, Inline, 2RU, Intelligent


Our Price: $1,163.23
List Price: $1,632.60
You save 29%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

3000VA line interactive UPS for server, network and telecommunications equipment. 2U rackmount form factor. Corrects brownouts and overvoltages from 79 to 147. Sine wave output. Uninterruptible Power Supply (UPS) maintains battery derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 9 output receptacles. NEMA L5-30P input plug, NEMA 5-20P replacement plug included. Network-grade AC surge and noise suppression. Network management interfaces include 2 USB ports, 2 DB9 serial ports and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions via all 5 network interfaces at once. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 3 bank switched PDU. 3 stage metered current monitoring and battery charge LEDs . Mains power and voltage regulation LEDs. Audible alarm. 4 post rack mounting accessories. Two post rackmount and wallmount accessories available. Field replaceable, hot swappable internal batteries and battery packs. Attractive all-black UPS design.


  • 3000VA / 2250 watt output power capacity compatible with North American 120V / 60Hz power
  • 2U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 18 inches
  • Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
  • Line interactive Automatic Voltage Regulation (AVR) corrects inputs from 79-147VAC back to usable 120V levels without consuming battery power
  • Dual boost AVR circuits boost undervoltages by 14% or 24% depending on the severity and reduces overvoltages by 12%
  • Network interfaces support simultaneous communications via 2 USB, 2 DB9 serial and SNMPWEBCARD slot
  • Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
  • Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control
  • Built in Emergency Power Off (EPO) interface with cable
  • Sine wave output in AC and battery modes
  • Expandable runtime with optional battery packs – BP48V24-2U (limit 1) and BP48V60RT-3U (multi-pack compatible)
  • Half load runtime of 13 minutes with internal batteries, Add 1 BP48V24-2U for 45 minutes or 1 BP48V60RT-3U for 98 minutes (1500VA / 1120 watts)
  • Full load runtime of 4 minutes with standard internal batteries
  • Includes 9 output receptacles arranged in 3 load banks (4 NEMA 5-15R / 4 NEMA 5-15/20R / 1 NEMA L5-30R)
  • Ships with NEMA L5-30P input plug, user installable NEMA 5-20P replacement plug included
  • Integrated 3 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
  • 3 stage metered LEDs offer current monitoring and battery charge level
  • Mains power and voltage regulation LEDs offer at-a-glance power status information
  • Front panel switches support self-test and alarm cancel functions
  • Included UPSRMRII adjustable mounting rails support installation in 19 inch racks with a front-to-rear depth of 23.5 and 36.5 inches (add a 2nd UPSRMRII accessory to extend the reach to 35.25 to 49.5 inches)
  • UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user required
  • Supports 2 post rackmount and wallmount installation with optional 2POSTRMKITWM accessory
  • Supports upright tower placement with optional 2-9USTAND accessory
  • UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Emissions) listed

Specifications: See Product Description PDF
