Atlas IED FAP82T 8" 60 Watt Ceiling Speaker

OUR PART #: FAP82T MFR #: FAP82T

Copied to clipboard

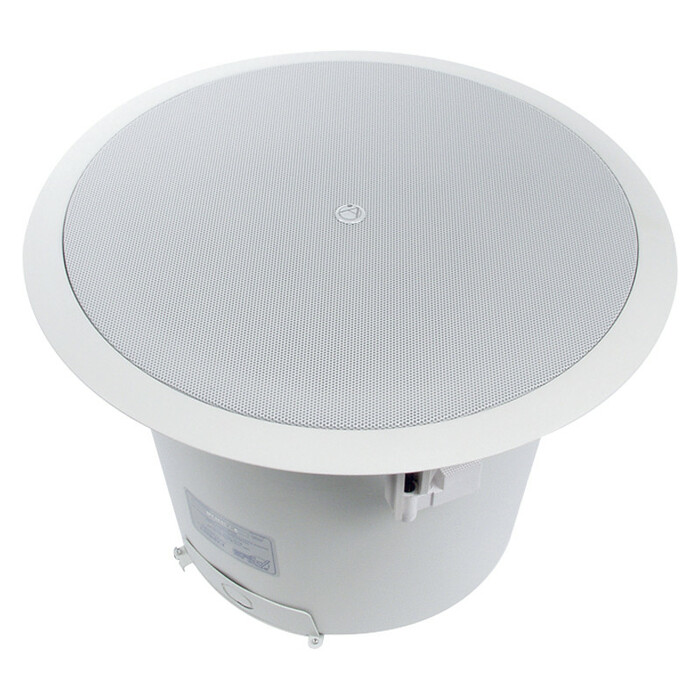

Atlas IED FAP82T 8" 60 Watt Ceiling Speaker Image 1
Atlas IED FAP82T 8" 60 Watt Ceiling Speaker
Our Price: $221.99
List Price: $275.99
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$7/mo* with 36 month financing. ‡
Limited Time. Learn How
This item can only be purchased in quantities of 2

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Atlas Sound FAP82T is a premium performance 70.7/100V tuned & ported 8" coaxial ceiling speaker system perfectly suited for many business music and public address applications –especially applications where high ceilings require loudspeakers with increased efficiency and tighter pattern control. The 8" coaxial speaker system features extended low frequency response rivaling that of many subwoofers.

The FAP82T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system. The FAP82T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

The FAP82T’s 100 degree dispersion angle (in the 2kHz octave band) is perfect for higher ceiling applications where tighter pattern control is required. Tight pattern control (not exceeding 100 degrees) is important for high ceiling applications. Loudspeakers exhibiting wider dispersion than 100 degrees will exceed 6dB of drop off at the edge of the coverage pattern causing excessive SPL variances. Using more of the same wide coverage speaker in a high ceiling application to compensate only worsens the situation, as comb filtering from multi-path arrivals will result.

The loudspeaker component matches is based on the performance of the legendary Atlas Sound FA series drivers. High quality construction 1" voice coil, 8" coaxial cone type driver includes polypropylene cone with a butyl rubber surround. The19mm coaxially mounted tweeter is constructed of PEI. A high sensitivity of 90dB average means less power may be required to achieve the desired SPL. This loudspeaker is factory assembled to an optimally tuned & ported deep drawn enclosure and includes a specially designed 60 watt low saturation 70.7V/100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This tap selector switch also includes a transformer bypass setting for instances where the 8 ohm FAP82T driver is to be direct coupled with a low impedance amplifier.

Atlas Sound FAP82T Features:

  • High efficiency 8" driver
  • Extended low frequency response from the optimally tuned and ported deep drawn galvanized steel enclosure (937 cubic inches)
  • 60 watt enhanced quality 70.7V/100V internal transformer minimizes insertion loss and maintains low frequency
  • Front mounted tap selector switch for easy system tuning adjustments (1.9W to 60W @ 70.7V plus 8 ohm setting)
  • Unique “trap door” input section allows for through conduit runs with rigid or flex conduit
  • 4 Pole detachable “phoenix” style connector allows easy pre-wiring and is convenient for daisy chaining additional Strategy full range speakers or subwoofers
  • “Press -fit” grille to better blend into contemporary architecture
  • Ships complete with speaker/transformer factory assembled into back can, grille and unique C-ring/V-rail mounting hardware
  • May be pendulum mounted via top mounted eyebolt (included). Enclosure is also finished in white for optimum aesthetics when hung in open ceiling applications
  • UL1480 & UL2043 pending
