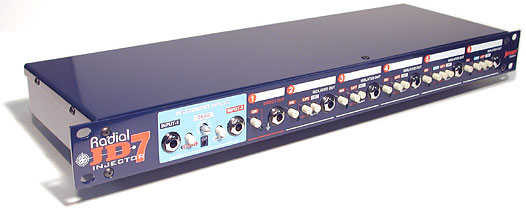

Radial Engineering JD7
Guitar Signal Distribution Amplifier


Our Price: $1,099.99
List Price: $1,200.00
You save 8%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Radial Engineering JD7
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Radial JD7 Injector is a creative recording tool disguised as a guitar signal distribution amplifier that allows a guitar signal to drive as many as seven amplifiers simultaneously without loss or coloration.

Front panel control makes selecting amplifiers, ground paths and polarity (phase reversal) easy. The JD7 utilizes a newly developed Class-A audio signal path that has been optimized for use with electric guitars and is 100% discreet (no opamps or chips) producing the most accurate and faithful signal at each output. to eliminate such problems as 60 cycle hum caused by ground loops without signal degradation, the world's finest audio transformers by Jensen are employed.

The Radial JD7 also features a 600-Ohm balanced direct output to allow the engineer to record a dry guitar track or to use the JD7 as a direct box. A balanced input allows a pre-recorded track to be sent back into the JD7 which can then drive amplifiers, effect pedals and other devices.


  • 1-in, 7-out signal routing system for guitarists
  • One-touch super intuitive operation of all functions
  • Class-A circuit, Jensen Transformer isolated outputs
  • Natural sound does not introduce artifacts to thesignal
  • Drag control recreates guitar to amp relationship
  • Balanced I/O - remix new sounds from dry tracks
    • Instrument Inputs: 2 selectable 1/4" inputs w/8dB padon Input 2
    • Balanced Inputs: XLR balanced line level inputw/level control
    • Instrument Outputs: 2 x 1/4" Class-A direct coupledoutputs, 5 x 1/4" Jensen transformer isolated outputs, Mic level isolatedbalanced XLR output
    • Ground Lifts: on output Channels 2-6
    • Polarity Reverse: 180 degree reverse on all isolatedoutputs
    • Effect Loops: 2 separate switchable loops, 1/4"send/receive on Channels 5 and 6
    • Dimensions (W x D x H): 19" rack mount 1RU, chassis17.5" x 6" x 1.75"
    • Shipping Weight: 8 lbs
