Radial Engineering JDI Duplex Passive Premium Stereo Direct Box

OUR PART #: JDI-DUPLEX MFR #: R800 1020

Copied to clipboard

The JDI Duplex™ takes the world’s finest passive direct box one step further... ...Read more

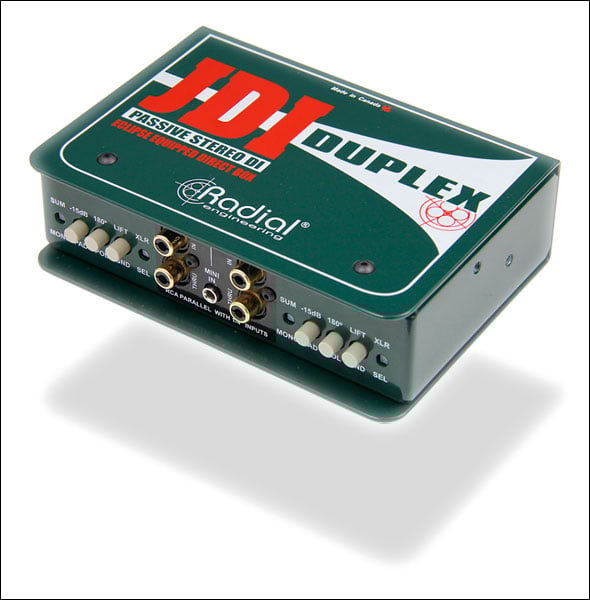

Radial Engineering JDI Duplex Passive Premium Stereo Direct Box Image 1
Radial Engineering JDI Duplex Passive Premium Stereo Direct Box Image 2
Radial Engineering JDI Duplex Passive Premium Stereo Direct Box Image 3
Radial Engineering JDI Duplex Passive Premium Stereo Direct Box Image 4
Radial Engineering JDI Duplex Passive Premium Stereo Direct Box
Our Price: $459.99
List Price: $552.00
You save 17%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$13/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The JDI Duplex™ takes the world’s finest passive direct box one step further, providing numerous connector types to easily interface with any sound source – including line-level devices – while maintaining the highest audio quality and transparency. Optimized to handle extreme transients without distortion, with a linear frequency response that extends from 20 Hz up to 40 kHz, the JDI Duplex comes equipped with 1/4" and RCA connectors for -10dB consumer electronics and XLR inputs for +4dB professional line sources.

Like the Radial JDI, the Duplex employs two high-performance 'made in the USA' audio transformers and the same pristine audio signal path that has made the JDI the industry standard. It features exceptional signal handling with virtually zero phase shift or harmonic distortion, while remaining linear across the entire audio spectrum. When driven to extremes, the natural transformer saturation and resulting warm Bessel curve makes the Radial Duplex the perfect choice for smoothing out highly dynamic instruments such as digital pianos and electronic drums that can sound harsh when pushed. Transformer isolation provides the additional benefit of eliminating troublesome ground loops that can cause hum and buzz in the audio system or interfere with video displays.

Radial's innovative 'book-end'™ design provides protective zones that shield connectors and switches from the abuses of professional touring . A welded I-beam inner frame is designed to eliminate outside stresses that could torque the PC board and cause premature solder point and trace failure. A 14-gauge steel shell couples with the mu-metal transformer shield to eliminate stray magnetic field interference from power transformers and a full-bottom no-slip pad provides plenty of stay-put and helps reduce electrical coupling from amplifier chassis hardware.

Grab the JDI Duplex today for the exceptionally wide bandwidth, versatility, and rugged chassis that Radial Engineering is hailed for.

Features

  • Jensen transformer-equipped passive DI
  • Eliminates hum and buzz from ground loops
  • 1/4", 3.5mm, RCA, and XLR inputs to connect any source
  • Exceptional signal handling and noise rejection

Specifications

  • Circuit type: Passive transformer isolated
    • Transformer: Jensen JT-DBE
  • # of Channels: 2
  • Frequency Response: 20 Hz to 20 kHz, ±0.2 dB
  • Dynamic range: 135 dB
  • Signal to noise: 119 dB
  • Phase Deviation: -1° @ 20 Hz; 0.5° @ 150 Hz; 600 Ω load
  • Total Harmonic Distortion: 0.001% @ 20 kHz, +4 dBu; 600 Ω load
  • Input:
    • 4 x 1/4" jack (CH-1 & CH-2 In & Thru)
    • 4 x RCA(CH-1 & CH-2 In & Thru) (mono-merge function for L & R)
    • 1 x 3.5mm jack
    • 2 x XLR
    • MERGE MIX function: Stereo to mono merge switch x 2
    • Input impedance: 140 kΩ (pad off); 10 kΩ (pad on)
    • Max. Input Level: +20 dB @ 1 kHz
  • PAD: -15dB pad on input
  • HI-CUT filter: 10kHz low pass switch
  • Output: 2 x balanced XLR-M
    • Output Impedance: 600 Ω
  • Ground lift: LIFT switch - XLR outs pin-1
  • Construction: 14 gauge steel chassis and outer shell
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions (H x W x D): 3.25" x 8.25" x 6.25"
  • Weight: 2.2 lb (1 kg)
