Radio Design Labs FP-CH8
Chime Generator

OUR PART #  FP-CH8

Our Price: $238.45
List Price: $318.96
You save 25%! (Low Price Guarantee)
In Stock

Recommended Accessories

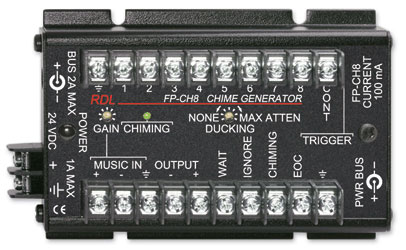

Radio Design Labs' FP-CH8 is an electronic chime generator that produces eight different synthesized chimes. Each chime can consist of up to 3 tones and 3 harmonics selected to produce sonically natural effects. Certain chimes are single tones and some are a sequence. Each of the 8 chimes is triggered by an individual external closure to ground. A momentary closure to ground is required to start a chime. A single additional CONT (continuous) terminal is also provided. Each chime plays once unless the CONT terminal is grounded. The continuous function causes a chime strike or sequence to repeat until the CONT terminal is ungrounded. This function causes tone chimes (Chimes 4 and 8) to be extended in duration until the CONT terminal is released. Background music or paging audio may be connected to the MUSIC IN input. When a chime plays, the music source will be quickly faded to a level set on the front-panel DUCKING trimmer. The ducking fade depth may be adjusted from 0 dB to fully off, allowing chimes to be mixed with the music or to interrupt the music. The front-panel CHIMING indicator illuminates while music is ducked and a chime is playing. WAIT and IGNORE terminals are provided to prevent or delay chiming action.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

Features:

  • 8 Individually Selectable Electronic Chimes
  • Selectable Single or Repeated Chime
  • Synthesized Bell Harmonics for Natural Sound
  • External Chime Actuation
  • Input for Background Music or Paging Audio
  • Automatic Ducking

Specifications:

  • Music Input:  50 kOhm balanced or unbal, +22 dBu max.
  • Frequency Response:  20 Hz to 50 kHz (+/- 0.5 dB)
  • THD+N:< 0.05% (unity gain, 50 Hz to 20 kHz)
  • Noise below +4 dBu:< -70 dB (unity gain)
  • Headroom:> 16 dB (above +4 dBu)
  • Gain:  Unity to +22 dB (adjustable)
  • Ducking Fade Depth: 0 dB to fully off (adjustable)
  • Output: 150 Ohm balanced, + 4 dBu or 75 Ohm unbal.
  • Trigger Inputs (8):Trigger on high to low transition, 0.5 mA
  • Control Inputs (3): WAIT (play delay), IGNORE (no playback), CONT (continuous repeat)
  • Control Outputs (2): CHIMING (Open-collector low @ 50 mA), EOC (low 100 mS at end of chime)
  • Power Requirement: GROUND-REFERENCED 24 to 33 Vdc @ 100 mA
  • Dimensions: 1.2" H x 3.25" W x 6.41" L (3.05 x 8.26  x 16.28 cm)
