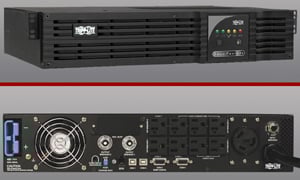

Tripp Lite SMART2600RM2U
UPS power system


Our Price: $1,108.08
List Price: $1,555.20
You save 29%! (Low Price Guarantee)
In Stock

2600VA line-interactive UPS for server, network and telecommunications equipment. 2U rackmount form factor. Corrects brownouts and overvoltages from 79V to 147V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 9 output receptacles. NEMA 5-20P input plug; NEMA L5-30P replacement plug included. Network-grade AC surge and noise suppression. Network management interfaces include 2 USB ports, 2 DB9 serial ports and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 5 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 3-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs. Attractive all-black color scheme.


  • 2600VA / 2100 watt output power capacity compatible with North American 120V / 60Hz power
  • 2U rack/tower UPS installs in standard 19 inch rack enclosures with an installed depth of only 19 inches
  • Protects sensitive networking equipment from blackouts, voltage fluctuations and transient surges
  • Line interactive Automatic Voltage Regulation (AVR) corrects inputs from 79-147VAC back to usable 120V levels without consuming battery power
  • Dual boost AVR circuits boost undervoltages by 14% or 24% depending on the severity and reduces overvoltages by 12%
  • Network interfaces support simultaneous communications via 2 USB, 2 DB9 serial and SNMPWEBCARD slot
  • Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
  • Communications ports support on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, internal UPS temperature, AC line frequency, timed inverter shutoff, activate self-test and load bank output power control
  • Built in Emergency Power Off (EPO) interface with cable
  • Sine wave output in AC and battery modes
  • Expandable runtime with optional battery packs – BP48V24-2U (limit 1) and BP48V60RT-3U (multi-pack compatible)
  • Half load runtime of 18 minutes with internal batteries, Add 1 BP48V24-2U for 49 minutes or 1 BP48V60RT-3U for 107 minutes (1300VA / 1050 watts)
  • Full load runtime of 6 minutes with standard internal batteries
  • Includes 9 output receptacles (4 NEMA 5-15R / 4 NEMA 5-15/20R / 1 NEMA L5-20R)
  • Ships with NEMA 5-20P input plug, user installable NEMA L5-30P replacement plug included
  • Integrated 3 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
  • 3 stage metered LEDs offer current monitoring and battery charge level
  • Line power and voltage regulation LEDs offer at-a-glance power status information
  • Front panel switches support self-test and alarm cancel functions
  • Included UPSRMRII adjustable mounting rails support installation in 19 inch racks with a front-to-rear depth of 23.5 and 36.5 inches (add a 2nd UPSRMRII accessory to extend the reach to 35.25 to 49.5 inches)
  • UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user required
  • Supports upright tower placement with optional 2-9USTAND accessory
  • UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Emissions) listed

Specifications: See Product Description PDF
