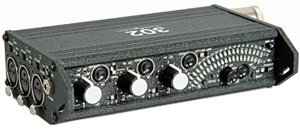

Sound Devices 302
Compact Production Mixer

OUR PART #  302-SOUND-DEVICES

Our Price: $1,698.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Developed specifically for audio-for-picture applications, the 302 mixer is the perfect tool for production companies and camera operators wanting to take control of their audio. The 302 is stunning for its size, flexibility, control and performance; it is the most compact and cost-effective battery-powered professional audio mixer in its class.

With important features to accommodate nearly any over-the-shoulder production, the 302 interfaces with wireless transmitters and receivers, camera audio inputs of all kinds, and external audio recorders. Its microphone inputs share the same superb circuitry of all Sound Devices field production tools.

Like Sound Devices larger 442 Field Mixer, the 302 has a complete feature-set in a compact, functional design. All controls are accessible on its three main surfaces; no hidden controls. The high-efficiency power circuitry runs the mixer from either three internal AA batteries or external 5-18 VDC.

Sound Devices 302 Features:

  • Lundahl transformer-balanced mic or line level inputs on XLR connectors
  • Continuously adjustable input trim
  • Two-position high-pass filter
  • Pan switches
  • Limiters on inputs and outputs
  • Stereo and MS linking of channel 1 and 2
  • Phantom (48 V or 12 V) or "T" microphone powering selected per channel
  • Solo (PFL) channel monitoring in headphones
  • Peak limiters per channel
  • Tape level output on TA3 locking connectors
  • Active-balanced line/tape/mic level outputs on XLR connectors
  • Stereo tape level output on TA3 connector
  • Return input for monitoring
  • Channel 4/5 input option
  • Sunlight-viewable LED meters with proprietarysoftware selected ballistics
  • On-board MS stereo matrix
  • Push pots for setup features to keep the front panel clutter-free
  • Durable extruded aluminum chassis
  • Weight less than 1 kg with batteries
  • Powered by three AA batteries or external 5 - 18 VDC

Sound Devices 302 Specifications:

  • Frequency Response: 20 Hz - 30 kHz, +0.2, -0.5 dB, -1dB @ 5 Hz and 50 kHz typical
  • Equivalent Input Noise: -126 dBu (-128 dBV) maximum (22 Hz - 22 kHz bandwidth, flat filter, trim control fully up)
  • Input Clipping Level: 0 dBu minimum (trim control fully down)
  • Line Output Clipping Level (1% THD): 20 dBu minimum,18 dBu minimum with 600 ohm load
  • Dynamic Range: 115 dB minimum (trim fully down)
  • THD + Noise: 0.007% typical (1 kHz, +4 dBu at Lineout), 0.009 max (50 Hz to 20 kHz, +18 dBu at line out, fader fully up)
  • Output Noise: -100 dBu (-102 dBV) maximum (22 Hz - 22kHz bandwidth, flat filter, master gain fully up, faders fully down)
  • L/R Gain Matching: +/- 0.1 dB (Mic In to Line Out)
  • Metering: 40-segment, sunlight-viewable, Selectable peak, VU, or peak (with or without peak hold) + VU ballistics
  • High-Pass Filters: Switchable 80 Hz or 160 Hz, 12dB/oct, silent activation
  • Mic Powering (each mic selectable): none, 12 Vphantom, 48 V phantom, 12 V T-power, selected per mic input
  • Input Limiters: +18 dBu threshold, 20:1 limitingratio, 1 mS attack time, 200 mS release time.
  • Output Limiters: Affects the outputs of the mixer.Threshold selectable from +4 dBu to +20 dBu, 1 dB steps, 20:1 limiting ratio,1 mS attack time, 200 mS release time
  • Power supply: Internal ±16 V (bi-polar) regulated audio rails, 2.4 - 6 V range internal batteries, isolated (floating) external DC input jack, 5-18 V. locking 4-pin Hirose connector, pin-4 = (+), pin-1 =(-)
  • Temperature: Operating: -20°C to 60°C, 0 to 95% relative humidity; (non-condensing), storage: -40°C to 85°C
  • Dimensions (H x W x D): 1.8" x 8.4" x 4.5" (47 x 214x 114 mm)
  • Weight: 1.8 lbs. (0.85 kg) unpackaged w/ 3 x AA batteries
Production Case for 302, 7-Series, and MixPreSound Devices CS-3 Production Case for 302, 7-Series, and MixPre

The CS-3 is a high-quality production case for Sound Devices' 302, 722/744T, or MixPre field production products. Designed and built for Sound Devices by Camrade, the CS-3 has a mixer/recorder compartment plus room for wireless ...

In Stock

Free Shipping Available

Our Price:$165.00

Interconnect Cable TA3-F to 3.5mm, 6", Use with 302Sound Devices XL-7 Interconnect Cable TA3-F to 3.5mm, 6", Use with 302

TA3-F to 3.5-mm jack for use with 302; 12-inch; to connect unbalanced, stereo TA3 tape out connection to unbalanced stereo 3.5-mm inputs.

In Stock

Our Price:$50.00Call for Special Sale Price!

Audio Organizer Case (12 x 6.5 x 7" Interior)Porta-Brace AO-1.5X Audio Organizer Case (12 x 6.5 x 7" Interior)

Porta-Brace's AO-1.5X Audio Organizer Case is reversible, allowing you to position the mixer according your needs.  The top can be removed or completely turned and the main outside pocket can be removed and attached to ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$302.93List Price: $349.00You save 13%!

Audio Combination Case (for Sound Devices 302 Mixer)Porta-Brace MXC-302 Audio Combination Case (for Sound Devices 302 Mixer)

This is the larger of Porta-Brace's two Audio Combination Case available for Sound Devices' 302 mixer.  Under the mixer area is a battery area for powering the mixer with an NP1-type battery.  (When you install the mixer, be sure ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Free Shipping Available

Our Price:$198.77List Price: $229.00You save 13%!

NP Type Battery Cup wirh Hirose DCSound Devices XL-NPH NP Type Battery Cup wirh Hirose DC

NP-type battery cup with 12-inch cable terminated in Hirose 4-pin locking DC connector (HR10-7P-4P) at theequipment end. For use with Sound Devices MixPre (s/n >0506), 442 (sn >0303), and 302. Accepts NP-type batteries Short cord ...

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$89.00

Cable Link 442/302 to 552 12"Sound Devices XL-TA35 Cable Link 442/302 to 552 12"

552-specific link cable. Links Sound Devices 302 and 442 to the 552 to add inputs. TA5 to TA3.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$81.00

TA3-F Connectors (Bag of 4)Sound Devices XL-4 TA3-F Connectors (Bag of 4)

Bag of four (4) TA3-F (type) connectors.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$31.00

4 Pin Hirose Connector Sound Devices XL-H 4 Pin Hirose Connector

Bare Hirose HR10-7P-4P connector to mate with late model MixPre, 442, 302 and 7-Series DC inputs.

Usually ships in 7-14 business days.
Need it sooner? Call us!

Our Price:$23.00
