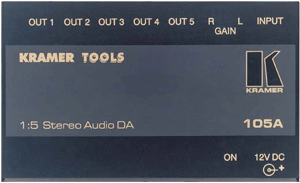

Kramer 105A 1:5 Stereo Audio Distribution Amplifier

The Kramer 105A is a high performance distribution amplifier for unbalanced stereo audio signals. It takes one stereo input and distributes the signal to five identical stereo outputs.

Specifications:

• Level (Gain) Controls. S/N Ratio - 80dB (unweighted). Compact Size - Part of the Kramer TOOLS™ family of compact, high quality and cost effective solutions.
• Input: 1 audio stereo/balanced mono,1Vpp/33kohm; on a 3.5mm mini phone connector.
• Outputs: 5 audio stereo/balanced mono 1Vpp/50ohm; on 3.5-mm mini phone connectors.
• Max. Output: 5 Vpp (> +4dBm).
• Audio Bandwidht: (-3dB); 20kHz.
• S/N Ratio: 80dB Unweighted.
• Control: Left and Right gain rear trimmers (0/+3.5dB range).
• Coupling: AC.
• Thd: 0.03% (2nd Harmonic).
• Power Source: 12 VDC, 100mA.
• Dimensions (W, D, H.): 4.7” x 2.95” x 0.98” (12cm x 7.5cm x 2.5cm)
• Weight: .062 lbs (0.28 kg) approx.
• Accessories: Power supply, mounting bracket.
• Options: VA-50P power supply with six 12VDC outlets. RK-T1, RK-T3 rack adapters
