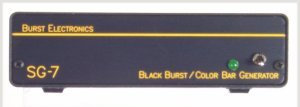

Burst Electronics SG7
SMPTE Color Bar/Black Burst Generator

OUR PART #:  SG7

The SG-7 Generator outputs SMPTE Color Bars and 6 outputs of black burst simultaneously. An ID option is available on the bars output. NTSC only, not available in PAL.
Learn More
Our Price: $904.75

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Burst Electronics SG7
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SG-7 Generator outputs SMPTE Color Bars and 6 outputs of black burst simultaneously. An ID option is available on the bars output. NTSC only, not available in PAL.

Specifications:

  • Video Output:
      -  Output: 1 volt standard video NTSC
      -  Output Impedance: 75 Ohms 1%
      -  Sync Tip: -40 IRE
      -  Black Burst: Sync, Color Burst and 7.5 IRE Setup
      -  Burst: +/-20 IRE, 3.579545 MHz
      -  Setup: 7.5 IRE NTSC
      -  Video Output Connector: BNC
      -  Output Protection: Open or Short, infinite duration
  • SMPTE Color Bars:
      -  Sync at -40 IRE
      -  Burst at +/- 20 IRE (3.579545 MHz)
      -  Setup at 7.5 IRE
      -  Fully saturated 75% bars (gray, yellow, cyan, green, magenta, red, blue)
      -  Reverse blue bars (blue, black, magenta, black, cyan, black, gray)
      -  100 IRE white bar
      -  -I and +Q signals
      -  Pluge pulse signal:
          *  Whiter than black at 11.5 IRE
          *  Black at 7.5 IRE
          *  Blacker than black at 3.5 IRE
  • Optional Audio Output:
      -  Unbalanced RCA (1 kHz, 0 dBm, 1% THD)
      -  Balanced MiniXLR (1 kHz, +4 dBm, 1% THD)
  • Dimensions: 5.6W x 1.5H x 7.3D (inches)
  • Wall module (included): 120 Vac 60 Hz, 12 Vdc 500 mA, UL Listed
  • DC Powered: 11-18 Vdc
  • Warranty: Two Years Parts and Labor
