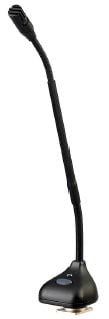

Electro-Voice PC-PLUS-12
12" MultiPattern Gooseneck Mic

OUR PART #:  PC-PLUS-12

The PolarChoice PC-Plus is the first miniature gooseneck microphone to combine the features and functionality of a desktop mic...
Learn More
Our Price: $451.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice PC-PLUS-12
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The PolarChoice PC-Plus is the first miniature gooseneck microphone to combine the features and functionality of a desktop mic, with the small unobtrusive size of an XLR mounted gooseneck microphone.  The unique profile of the PC-Plus housing places the push button switch and status LED in a more natural position and also creates a lower profile housing.  You can even go one step further: The lower half of the PC-Plus (with XLR connector) can be removed and the PC-Plus can be flush mounted.  The push-button can be configured for either toggle (push on/off), or as push-to-mute (cough switch).  You can also configure the microphones' state when power is first applied in toggle mode.  So, for example, if you have an installation with multiple PC Plus microphones, you can configure them so that only one mic is lve, when the system is first turned on.


The PC-Plus is also an EV PolarChoice multi-pattern microphone.  The multi-pattern versatility of the PolarChoice microphone makes it a true "problem solver".  With 3 directional and one non-directional polar patterns available, the PolarChoice microphone is ideal for virtually any installation.  Altering the polar pattern does not change the on-axis sonic character of the microphone; therefore changes in equalizer settings are unnecessary.  The PolarChoice PC-Plus is acoustically designed for high-quality sound reinforcement and broadcast applications.  The frequency response is tailored for wide-range sound reproduction with very natural sound pick-up for either distant or close-up use.
The PC-Plus also includes a switchable high pass filter that greatly reduces any vibration induced noise pickup.  All configuration controls are only accessible from the "bottom" of the microphone, reducing the chances of inadvertent changes.

The small, dual diameter gooseneck has two supple joints and a rigid center tube.  The rigid tube prevents unsightly twisting of the gooseneck but permits the user to exactly position the microphone.  The PolarChoice PC-Plus is designed to be phantom-powered with a wide voltage range of 12-52V dc (DIN Standard 45 596)



Features
  • • Dual Capsule Design with four polar patterns: Omnidirectional, Cardioid, Supercardioid, and Hypercardioid.
  • • Configurable push-button switch with status LED.
  • • Controls are on the bottom, hidden from view.
  • • XLR mounted or flush mounted.
  • • Switchable high pass filter.
  • • Consistant on-axis response.
  • • Available in 12 or 18 inch versions.
  • • Non-reflecting black finish.
Specifications
  • Generation Element: Dual condenser, back electret
  • Frequency Response: 50-20,000 Hz
  • Polar Patterns: Omnidirectional, Cardioid, Supercardioid, Hypercardioid
  • Switches and Controls:
    • Top mounted momentary push-button
    • Push on/off, or push-to-mute selector
    • Power up on/off selector
    • High-pass enable
    • 4-position polar pattern selector
  • Sensitivity, Open Circuit Voltage, 1 kHz: 5.6mV/Pa
  • Clipping Level (1% THD): >135 dB SPL
  • Equivalent Noise: <26 dB SPL A-weighted
  • Dynamic Range: >109 dB
  • Output Impedance, 1 kHz: 200 ohms
  • Power Requirements: Phantom, 12-52 VDC
  • Current Consumption: <8 mA with P12 supply
  • Polarity: Pin 2 positive, referenced to pin 3, with positive pressure on the diaphragm
  • Dimensions
    • Gooseneck Length: 305mm (12")
    • Maximum Head Diameter: 14.6mm (0.58")
    • Gooseneck Diameter:
      • Lower section: 7.9mm (0.31")
      • Upper section: 6.4mm (0.25")
  • Accessories Furnished: Windscreen, Two-piece shock mount, flush mount parts kit
  • Color: Non-reflecting black
  • Environmental Conditions:
    • Relative Humidity 0-50%: -29 to 74 degrees C (-20 to 165 degrees F)
    • Relative Humidity 0-95%: -29 to 57 degrees C (-20 to 135 degrees F)
  • Net Weight: 201 grams (7.1 oz)
