Bogen M600 2-Channel Power Amplifier, 600W at 4 Ohms

OUR PART #: M600 MFR #: BO-M600

Copied to clipboard

Bogen's M-Class series is designed for reliability, flexibility, and power... ...Read more

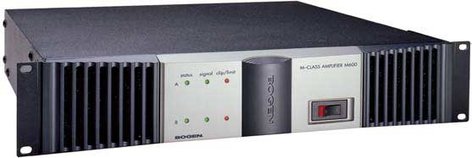

Bogen M600 2-Channel Power Amplifier, 600W At 4 Ohms Image 1
Bogen M600 2-Channel Power Amplifier, 600W At 4 Ohms
Our Price: $1,654.19
List Price: $3,267.35
You save 49%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$46/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Bogen's M-Class series is designed for reliability, flexibility, and power, and features three modes of operation: Stereo, 70V Mono, or Dual Mono; and 2 modular input bays for a variety of prioritized input types. Additional features include Bogen's patented Back-Slope circuitry for regulating the proper amount of AC energy from the amplifier's power toroid, an energy-saving Sleep Mode, and support for up to two input modules with up to two priority settings with the ability to add other modules as needed.

Bogen M600 Features:

  • 3 modes of operation to choose from - Stereo, Dual Mono, or 70V Mono
  • Low noise, low distortion, and high slew rate
  • Flexible modular input capability (2 module capacity)
  • Professional, dual-channel (balanced or unbalanced), high-impedance input module with gain selection included
  • 3 selectable low-frequency, roll-off choices
  • 2x1 mixer function when in mono modes
  • Insert connections for outboard equipment (in mono modes)
  • Post- and Pre-EQ Output Feeds (summed mono out in stereo mode)
  • DC, overload, short circuit, and thermal protection circuits Clip limiting circuits for speaker protection
  • Power-saving Sleep Mode for intermittent use applications
  • Status, Signal, and Clip/Limit indicators
  • Back-Slope AC voltage stabilization for dependable performance over varying AC line voltages
  • Heavy-gauge steel chassis with cast aluminum front panel
  • Recessed volume control knobs with snap-on protective cover
  • Mounts in 2 rack spaces (3-1/2") directly stackable without need for extra space above or below
  • 2 independent, continuously variable, cooling fans for dependable and quiet operation
  • Easily removable front fan grilles with filters
  • Stable into 2-ohm loads

Bogen M600 Specifications:

  • Power Output:
    • 70V Mono: 1200W @ 4 ohms
    • 4-ohm: 600W per channel
    • 8-ohm: 400W per channel
  • Input Sensitivity: 1.161V for 600W @ 4 ohms
  • S/N Ratio (20K BW): 109 dB ref. 8 ohms, F.P.
  • Class of Operation: H
  • Product Weight: 46 lbs
  • Connectors:
    • Power: 20A line cord
    • Input: 2 new Bogen std. 12-pin connector modules/RCA input
    • Output: 5-pin "touch-proof" Barrier Strip, RCAPre- & Post-EQ Output
  • Power Bandwidth: 20-40kHz .5% THD
  • THD @ 1 kHz rated power: less than .02%
  • Load Impedance: 4-8 ohms, 70V
  • Minimum Load Impedance (Stereo): 3.2 ohms
  • Frequency Response @ 1 watt: 20-20kHz +/-0.25dB
  • Output Regulation:
    • 1kHz Direct: 0.5dB @ 8 ohms
    • 1kHz Bridged: 1.5dB @70V
  • Inputs (Plug-in modules): Electronically balanced, high-impedance module standard, other modular input types available
  • AC Input Voltage Range: 95-130V AC, 60Hz
  • Maximum AC Current: 20A
  • Indicators: Status (On/Protect/Sleep), Clip/Limit, Signal
  • Temperature Range: 15 to 105 degrees F
  • Cooling: Forced Air Variable Speed Fan
  • Dimensions (WxHxD): 17" x 3 1/2" x 16"
  • Protection: RF, DC, Low-frequency, Thermal, Low-Impedance, Circuit-Breaker, Short Circuit
  • Special Features: Sleep Mode, Back-Slode regulation, Stereo, Dual Mono,70V Mono Operation, Toroidal Power Transformer
