RTS SS2002S-TELEX 2 Channel Speaker Station with Top Handle

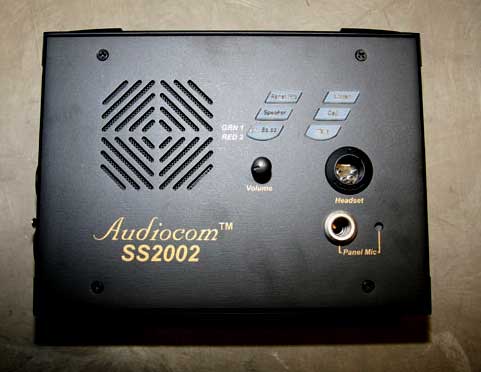

The SS2002S is a 2 Channel portable remote speaker station with a top handled box. May be used with a headset, or with the buit-in speaker and panel microphone or an optional gooseneck mic. Telephone style hadsets may also be used. This unit provides switch selectable access to either of two intercom channels. This version is the "S Box" version and is portable. It comes with a carrying handle and dual loop-through intercom connections which permit stations to be quickly interconnected using pre-fabricated cables.

Specifications

• Power Requirements
  • Phantom power: +24VDC nominal, 75mA
  • Local power: +12 to +15VDC, 500mA
• Dynamic-mic Headset/Handset
• Microphones
  • 50-200ohms, dynamic (balanced or unbalanced)
• Headphones (not included)
  • 150-600 Ohm, monaural
• Connector type: XLR-4M
  • Pin 1 - Microphone Low
  • Pin 2 - Microphone High
  • pin 3 - Headphone High
  • Pin 4 - Headphone Low
• Panel Mic
  • Built in Mic
    • 2.2kOhms, electret (44mV nominal), Omnidirectional
  • Gooseneck Mic (mic NOT included): 1/4" threaded TRS, 5kOhms, electret (44mV nominal) compatible with MCP-90 series mics
• Intercom Channels, Balanced Mode (SW1 set to BAL position)
  • Output Level
    • 1 VRMS nominal
  • Input Impedance
    • 300Ohms
  • Bridging Impedeance
    • Greater than 5kOhms
  • Sidetone: 20dB adjustable range
• Call Signaling
  • send
    • 20kHz +/- 100Hz, 0.5Vrms +/-10%
  • Receive
    • 20kHz +/- 800Hz, 100mVRMS
  • Mic Kill Detect Frequency
  • Noise Contribution
    • Less than - 70dB
  • Common mode rejection ratio
    • Greater than 50dB
  • Connector Type: Six position push type terminal block
    • pin 1 - audio and DC common
    • Pin 2 - Local power (+12 to +15VDC), if needed
    • Pin 3 - Intercom Ch1 audio low and +24VDC power
    • pin 4 - Intercom Ch1 audio high and +24VDC power
    • Pin 5 - Intercom Ch2 audio low and +24VDC power
    • Pin 6 - Intercom Ch2 audio high and +24VDC power
  • 24kHz +/-800Hz, 100mVRMS
• Intercom Channels, Unbalanced Mode (SW1 set to UNBAL position)
  • Output level
    • 0.79VRMS +/- 10%
  • Input Impedance
    • Greater than 10kOhms
  • Bridging Impedance
    • Greater than 10kOhms
  • Sidetone: -40dB, 20dB adjustable range
• Call Signaling
  • Pin 1 - common
  • Pin 2 - Local Power (-12 tp +15VDC), if needed
  • Pin 3 - power +30VDC
  • Pin 4 - Intercom CH1 audio and DC call signaling
  • Pin 5 - Power +30VDC
  • Intercom CH2 audio and DC call signaling
• Speaker Output Power
  • 4W max @ 8 Ohms
