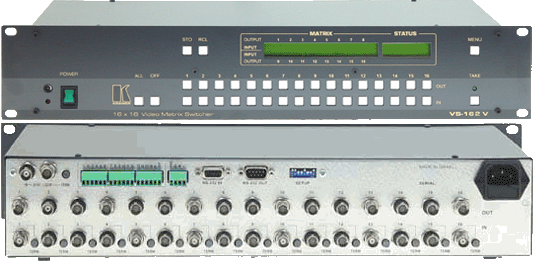

Kramer VS162V
16x16 Video Matrix Switcher

OUR PART #:  VS162V

The VS-162V is a high performance matrix switcher for composite video signals.
Learn More
Our Price: $1,560.00
List Price: $1,950.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS162V
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VS-162V is a high performance matrix switcher for composite video signals. It can be configured as an 8x8 s-Video (Y/C) switcher, a 5x5 component (YUV) switcher, or a 4x4 RGBS Switcher.

Bandwidth - 100MHz (- 3dB) fully loaded.  HDTV Ready.  Multi-Mode - Configure as either a 16x16 composite, an 8x8 s-Video (Y/C), a 5x5 component (YUV), or 4x4 RGBS switcher.  Looping Inputs and Sync.  Selectable Input and Sync Signal Termination.  Control - Front panel, RS-232 (K-Router™ Windows® - based software is included),   RS- 485, contact closure,   IR remote (Included).  Take Button - Execute multiple switches all at once.  Memory Locations - Store multiple switches as presets to be recalled and executed when needed.  Standard 19” Rack Mount Size - 2U.

  • INPUTS:   16 composite video, or 8 s-Video (YC), or 4 RGBS, or 5 YUV, 1Vpp/75 ohm;, on BNC connectors.
  • OUTPUTS:   16 composite video, or 8 s-Video (YC), or 4 RGBS, or 5 YUV, 1Vpp/75 ohm;, on BNC connectors.
  • MAX. OUTPUT LEVEL:   2.18 Vpp/75 ohm;.
  • BANDWIDTH (-3dB):   100MHz.
  • DIFF. GAIN:   0.01%.
  • DIFF. PHASE:   0.01Deg.
  • K-FACTOR:   0.05%.
  • S/N RATIO:   70.2dB.
  • CROSSTALK:   -52dB @ 5MHz, all hostile.
  • CONTROLS:   Manual via front panel switches, RS-232 or RS- 485.
  • COUPLING:   DC.
  • POWER SOURCE:   115/230 VAC, 50/60 Hz, 23VA.
  • DIMENSIONS:   19-inch (W), 7-inch (D) 2U (H) rack mountable.
  • WEIGHT:   3.5Kg. (7.8 lbs.) approx.
  • ACCESSORIES:   Power cord, Windows® - based control software, Null modem adapter.
