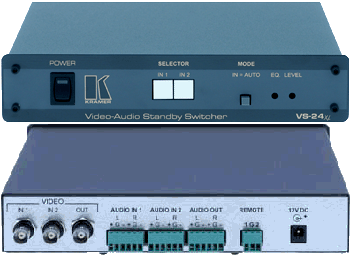

Kramer VS24XL
Switcher, 2x1, Standby Switcher

OUR PART #:  VS24XL

The VS-24xl is a high performance switcher for composite and balanced stereo audio signals.
Learn More
Our Price: $488.00
List Price: $610.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VS24XL
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VS-24xl is a high performance switcher for composite and balanced stereo audio signals. When configured as a stand-by switcher, it will switch to input 2 when the input 1 signal is interrupted.

High Bandwidth - 620MHz (- 3dB).  Control - Automatic, front panel or contact closure.  Automatic Standby Switching (On/Off) - When enabled, during any interruption of the input 1 signal (default), input will automatically switch to the output.  Level (Gain) and EQ (Peaking) Controls.  Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-50RN adapter.

INPUTS:   2 composite video 1Vpp/75 ohm; on BNC connectors. 2 balanced audio stereo + 4dBm on detachable terminal block connectors.   OUTPUTS:   1 composite video 1Vpp/75 ohm; on a BNC connector. 1 balanced audio stereo + 4dBm on a detachable terminal block connector.   MAX. OUTPUT LEVEL:   Video: 2.1Vpp   VIDEO BANDWIDTH (-3dB):   620MHz.   AUDIO BANDWIDTH (-3dB):   20kHz.   DIFF. GAIN:   0.03%.   DIFF. PHASE:   0.03Deg.   K-FACTOR:   0.05%.   S/N RATIO:   Video: 74dB; audio: 71dB weighted.   CROSSTALK:   Video: -56.3dB; audio: - 65.8dB @ 1kHz.   CONTROLS:   Video Level: - 0.8 to +6.4dB; EQ.: 0 to +12.8dB.   AUDIO THD + NOISE:   0.019%   AUDIO 2nd HARMONIC:   0.002%.   POWER SOURCE:   12VDC, 69mA.   DIMENSIONS:   22cm x 18cm x 4.5 cm (8.7” x 7” x 1.7”) W, D, H (half 19”, 1U).   WEIGHT:   1.2kg. (2.65 lbs.) approx.   ACCESSORIES:   12VDC power supply   OPTIONS:   RK-80 Rack adapter
