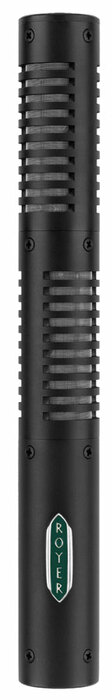

Royer Labs SF12
Stereo Coincident Ribbon Microphone

OUR PART #  SF12

Our Price: $2,695.00
List Price: $2,895.00
You save 7%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The Royer/Speiden SF-12 stereo coincident ribbon microphone is one of the finest devices of its kind, combining high quality audio performance with outstanding stereo separation and imaging. It is a modern ribbon design with no audible diffraction effects or cavity resonance. An SF-12 is actually two matched microphones placed one above the other, each aimed 45 degrees from center. The frequency response is excellent regardless of the angle of sound striking the ribbons and off-axis coloration is negligible. The SF-12's extension cable comes with a Y adapter that splits into separate 3-pin male XLR connectors. The two connectors are labeled "Upper" and "Lower" for the upper and lower capsules of the microphone (when held vertically).

The two 1.8-micron ribbons are of pure aluminum (99.99%), each weighing approximately 1/3 milligram and producing superb transient response. The magnet/pole piece structure allows a wide uniform frequency range with no substantial peaks or dips. The case is ingot iron and forms part of the magnetic return circuit, an effective system with low leakage flux which accounts for the relatively high sensitivity in a trim package.

Warranty
Lifetime to original owner (repair or replace at Royer's option)

Features

  • True stereophonic recording from one microphone
  • High SPL capabilities
  • No internal active electronics to overload or produce distortion up to maximum SPL rating
  • Extremely low residual noise
  • Ribbon element not affected by heat or humidity
  • Absence of high frequency phase distortion
  • Equal sensitivity from front or back of elements
  • Consistent frequency response regardless of distance
  • High efficiency, matching toroid transformers
  • Very low magnetic leakage
    Specifications
    • Acoustic Operating Principle: Electrodynamic pressure gradient
    • Polar Pattern: Symmetrical figure-8
    • Generating Element: 1.8-micron aluminum ribbon
    • Frequency Response: 30-15,000 Hz ± 3dB
    • Sensitivity: > -52 dBv Re. 1v/pa
    • Output Impedance: 300 Ohms @ 1K (nominal)
    • Rated Load Impedance: >1500 Ohms @ 300 nominal impedance
    • Maximum SPL: >130dB
    • Output Connector: Male XLR 5 pin (stereo*)
    • Dimensions: 206 mm L X 25 mm W (8" L X 1" W)
    • Weight: 369 Grams (13 Oz)
    • Finish: Matte Black Chrome, Dull Satin Nickel (optional)
      Recommended Applications
      • Stereo & Distance miking
      • Overhead Drum miking
      • Percussion Instruments
      • Brass Instruments - Horn Sections
      • Woodwind Instruments
      • Stereo Acoustic Piano, Harp, etc
      • Choirs, Orchestras, String Sections
      • Acoustic & Electric Guitars
        Accessories
        • Protective wood case, 18' Cable - XLR5 to 2 standard 3 pin XLR male, microphone sock
        • Optional Accessories: Windscreen, Shock Mount
          Universal Microphone Shockmount
          Audio-Technica AT8410A Universal Microphone Shockmount
          The Audio-Technica AT8410A shock mount is useful for isolating your microphone from vibrations that can travel up the mic stand and later appear as various strange noises or low end rumbling on your tracks.Audio-Technica AT8410A ...
          In Stock
          49.00
          In Stock
          Free Shipping Available
          50 ft. Extension Cable for SF-12, SF-24 Mics
          Royer Labs EXC50 50 ft. Extension Cable for SF-12, SF-24 Mics
          50 foot extension cable for the SF12 and SF24 stereo microphones.
          Usually ships in 7-14 business days.
          Need it sooner? Call us!
          150.00
          Usually ships in 7-14 business days.
          Need it sooner? Call us!
          Free Shipping Available Special Order Item
          Shotgun Microphone Windscreen, 5.25"
          WindTech SG-200 Shotgun Microphone Windscreen, 5.25"
          Since 1976, WindTech has manufactured the highest quality American made microphone windscreens on the market. They are available in  25  brilliant colors, and a wide variety of shapes and sizes to fit most popular microphones. ...
          Usually ships in 7-14 business days.
          Need it sooner? Call us!
          27.99 37.50 25
          Usually ships in 7-14 business days.
          Need it sooner? Call us!

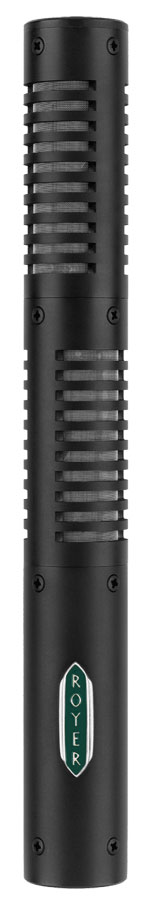

          Royer Labs SF12
