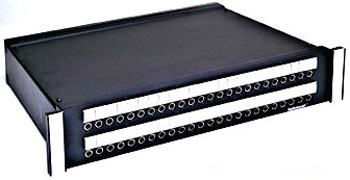

Switchcraft MTP48K3NO
Patch Panel 48pos


Our Price: $797.69
List Price: $1,276.30
You save 37%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Patch panel with 48 MT Jacks. 3.5" high, Normals brought out.


  • Unit features 48 MT style jacks in either 1RU (1.75"H) or 2RU (3.5"H) spaces
  • All versions utilize AES/EBU wiring for complete digital compatibility
  • Attractive, corrosion resistant nickel-plated, steel frame jacks
  • Gold-plated switching contacts reduce contact resistance, improve reliability
  • Rugged, attractive black epoxy-finished steel chassis
  • Extra wide designation strips for easy channel identification
  • 1RU version configurations include normals strapped and normals brought out
  • 2RU version configurations include normals strapped, normals brought out,and sleeve normals brought out


  • Frame: Nickel-plated steel
  • Bushing: Nickel-plated brass
  • Tip, Ring and Shunt Springs: Nickel silver with welded contacts
  • Assembly Screws: Zinc-plated steel
  • Welded Contacts: Gold alloy
  • Frame: C.R.S. black epoxy painted
  • Designation Strips: Black polycarbonate 94V-0
  • Designation Strip Covers: Clear polycarbonate
  • Jack Inserts: Thermoplastic polyester
  • Life: 30,000 cycles
  • Insertion Force: 7 lbs. maximum
  • Withdrawal Force: 1 lb. minimum
  • Operating: 0°C to +50°C
  • Jack Contact Resistance: 30 milliohms maximum initial
  • Jack Insulation Resistance: 10,000 megohms maximum
  • Dielectric Withstanding Voltage: 500V at 60 Hz AC
  • Working Voltage: 140 VDC maximum
  • Current Rating: 100 milliamps
