Microtech Gefell M296S
Omnidirectional Condenser Measurement Microphone for Class-2 Sound Level Situations

OUR PART #:  M296S

NOTE: Comes in satin nickel & black matte finishes. Includes wood case.
Learn More
Selected Model Price: $1,824.84
List Price: $1,827.00
Write the first review.
Microtech Gefell M296S
Select a Model: (shipping times are approximate)

Related Products

NOTE: Comes in satin nickel & black matte finishes. Includes wood case.

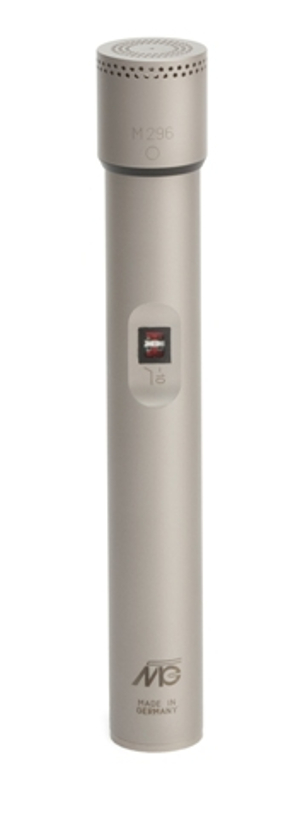

Microtech Gefell's M296S is a precision omnidirectional microphone that features a pure nickel diaphragm for accurate response throughout the audio bandwidth. A ceramic housing ensures temperature-stable performance and assures a uniform sensitivity at all frequencies. Ideal for ambient recording where a natural reproduction is desired. The M296S provides ruler-flat response that is suitable for true Class-2 test, measurement and instrumentation applications.

Microtech Gefell M296S Specifications:

  • Polar pattern: Omni
  • Acoustical operating principle: Pressure transducer
  • Frequency range: 20 Hz 20 KHz ± 2.5 dB
  • Sensitivity at 1 kHz: 15 mV / Pa
  • Switch position "reduced bass roll-off" at 90 Hz: -10 dB
  • Rated impedance: 150 ohms
  • Equivalent loudness level due to inherent noise:
    • CCIR 468-4: 22dB
    • DIN EN 60651: 14 dB - A
  • Signal-to-noise-ratio (re. 1 Pa at 1 kHz):
    • CCIR-weighted: 72 dB
    • A-weighted: 80 dB
  • Max. SPL for THD = 0.5 %: 134 dB
    • with preattenuation: 144 dB
  • Total dynamic range: 120 dB
  • Current consumption (P 48, DIN 45596, IEC 268-15): 3 mA
  • Output connector: 3-pin XLR-connector, gold plated contacts
  • Weight: 157 g
  • Dimensions (L x Ø): 156 x 21/24 mm
