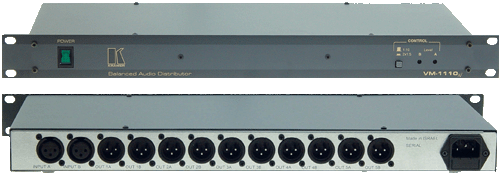

Kramer VM-1110XL/110V 1:10 Balanced MoNo Audio Distribution Amplifier

The VM-1110xl is a high performance distribution amplifier for balanced mono audio signals on XLR connectors. It can be configured as a 1:5 distribution amplifier for stereo balanced audio signals.

Features

• Level (Gain) Controls.
• Dual Mode - Configure as 1:10 (mono) or 1:5 (stereo) DA.
• S/N Ratio - 89.3dB.
• Standard 19” Rack Mount Size - 1U.

Specifications

• Inputs: 2 balanced audio + 4dBm/50k ohm; on female XLR connectors.
• Outputs: 10 balanced audio + 4dBm/50 ohm;s on male XLR connectors.
• Max. Output Level: 23.8 Vpp.
• Bandwidth (-3dB): 100 kHz.
• S/N Ratio: 89.3dB.
• Crosstalk: -78dB.
• Controls: Level (x2): - 0.7dB to + 5.1dB, mode selector switches.
• Coupling: DC.
• Audio THD + Noise: 0.081%.
• Audio 2nd Harmonic: 0.006%.
• Power Source: 230 VAC (115 VAC U.S.A) 7 VA.
• Dimensions: 19 inch (W), 7 inch (D), 1U (H), rack mountable.
• Weight: 5.7 lbs (2.6 kg) approx.
• Accessories: Power cord.
