ART dPDB
Dual Passive Direct Box

OUR PART #:  DPDB

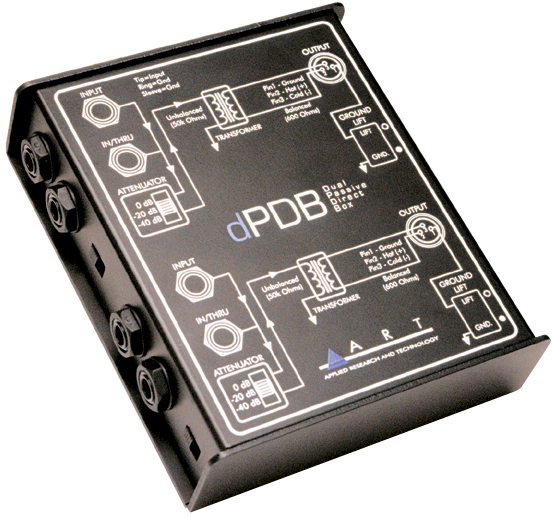

ART's dPDBâ„¢ Passive Direct Box features two high-quality direct boxes in one portable enclosure.
Learn More
Our Price: $48.00
List Price: $60.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART dPDB
Qty:

Similar Products

ART's dPDBâ„¢ Passive Direct Box features two high-quality direct boxes in one portable enclosure. It is a rock-solid, road-worthy DI for connection of the outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced inputs. It also allows connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.

The dPDB features switchable Input Attenuation (0 dB, -20dB, -40dB), a 50k Ohm Instrument Input, 50k Ohm Parallel Link jack, a 600 Ohm XLR Output Jack, and a switchable Ground Lift.

The dPDB excels at impedance matching and improving the sound of any instrument plugged into it.

The ART dPDB is a must-have in any audio tool kit. Enclosed in a rugged steel chassis, it is designed and manufactured to the highest standards to provide years of quiet, reliable performance.

Applications:

  • Electric guitar and bass pick up output signals - The high impedance signal from a guitar or bass guitar pickup is translated by the dPDB into a low impedance balanced signal required by mixing consoles.
  • Keyboards and line level signals - The dPDB automatically balances and matches the line level outputs of modern electronic keyboards. If you are using a multiple keyboard setup and your keyboards areall plugged into a single instrument amplifier, the dPDB can be used to replace individual direct boxes. Simply send the output of the instrument amplifier to the dPDB and then to the console (instead of a separate DI box for each keyboard).
  • DJ console output signals - DJ mixers often supply only an unbalanced –10dB signal. The dPDB converts this signal to a balanced line level signal before it reaches the console, while providing a convenient method of connector transition with the capability to run long cables.
  • Speaker level signals - The dPDB’s ability to accept speaker level inputs from a power amplifier’s output allows post-amplifier, post eq and effects signals to be fed directly to the console. In this manner, a particular effect or amplifier sound can be sent directly to the mix.

ART dPDB Specifications:

  • Ground Lift: Switchable
  • Input Attenuation: Switchable (0dB, -20db, -40dB)
  • Instrument Input: 50k ohm
  • Output Jack: 600 ohm XLR jack
  • Parallel Link Jack: 50k ohm
  • Frequency Response: 10Hz-50kHz +/-0.5dB @ +4dBu
  • Dimensions: 5.75" x 5" x 2"
