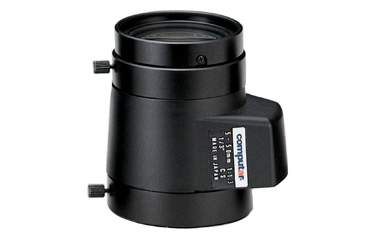

Computar/Ganz TG10Z0513FCS
Lens, 1/3" 5-450mm, F1.3, AutoIris

OUR PART #:  TG10Z0513FCS

Computar varifocal DC auto iris lenses offer maximum flexibility in camera installations requiring a wide range of focal lengths.
Learn More
Our Price: $83.54
List Price: $114.00
You save 27%!
Write the first review.
Computar/Ganz TG10Z0513FCS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Computar varifocal DC auto iris lenses offer maximum flexibility in camera installations requiring a wide range of focal lengths. Focal length adjustments can be made with a turn of the dial, virtually eliminating the cost and inventory problems associated with improper monofocal lens selection.

All lenses are CS-Mount, comprised of all glass optics, come with locking setscrews and a durable metal barrel and mount, and are covered by a three year warranty.

Specifications:

  • Focal Length 5mm - 50mm
  • Max. Aperture Ratio 1:1.3
  • Max. Image Format 4.8mm x 3.6mm(6mm)
  • Operation Range:
      -  Iris: F1.3 - F360C
      -  Focus: 0.8m - Inf.
      -  Zoom: 5mm - 50mm
  • Control:
      -  Iris: DC Auto Iris
      -  Focus: Manual
      -  Zoom: Manual
  • Object Dimension at M.O.D.:
      -  5mm: 77.7cm x 57cm
      -  50mm: 7.8cm x 6.0cm
  • Angle of View:
      -  D: 1/3 type, 64.0d - 6.9d
      -  H: 1/3 type, 51.8d - 5.6d
      -  V: 1/3 type, 39.2d - 4.3d
  • Effective Lens Aperture:
      -  Front: 29.5mm
      -  Rear: 8.7mm
  • Back Focal Length:
      -  Tele: 10.6mm
      -  Wide: 10.5mm
  • Flange Back Length: 12.5mm
  • Mount: CS-Mount
  • Filter Size: M37.5 P=0.5mm
  • Coil:
      -  Drive: 190 Ohms
      -  Control: 1000 Ohms
  • Operating Temperature: -20d - 50d C
  • Dimensions: 41.7mm x 57.5mm x 57.7mm
  • Weight: 140g
