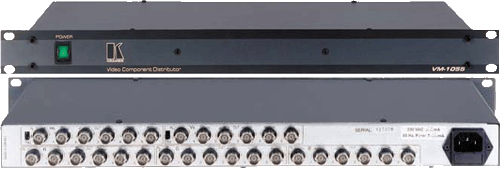

Kramer VM-1055
1:5 RGBHV Video Distribution Amplifier

OUR PART #:  VM1055

The VM-1055 is a high performance distribution amplifier for RGBHV video signals.
Learn More
Our Price: $760.00
List Price: $950.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Kramer VM-1055
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VM-1055 is a high performance distribution amplifier for RGBHV video signals. It provides correct buffering and isolation and distributes the signal to all five identical outputs.


  • High Bandwidth - 300MHz (- 3dB).
  • HDTV Compatible.
  • Selectable Sync input Termination - 75 Ohms (video), 510 Ohms (Graphics/TTL).
  • Standard 19” Rack Mount Size - 1U.


  • Inputs:   1 x 5 component/RGBHV/composite video, 1 Vpp/75ohm; on BNC connectors, (2 of them can be either video or SYNC 1Vpp/75ohm; or TTL level/510ohm;, selectable via a rear panel switch.).
  • Outputs:   5 x 5 component/RGBHV/composite, 1 Vpp/75Ω on BNC connectors (2 of them can be either video 1Vpp/75ohm; or Sync - analog or TTL level.).
  • Max. Video Output:   2 Vpp.
  • Video Bandwidth (-3dB):   300 MHz.
  • Diff. Gain:   0.1 %.
  • Diff. Phase:   0.1 Deg.
  • K-Factor:   0.05%.
  • Video S/N Ratio:   Better than 74dB.
  • Coupling:   DC.
  • Non-Linearity:   0.1%.
  • Power Source:   230VAC 50/60 Hz (115V U.S.A.), 5.3 VA.
  • Dimensions:   19 inch (W), 7 inch (D), 1U (H) rack mountable.
  • Weight:   5.7 lbs (2.6 kg) approx.
